ECU Memory Saver

 uploads/image/20230630/1688142530.png

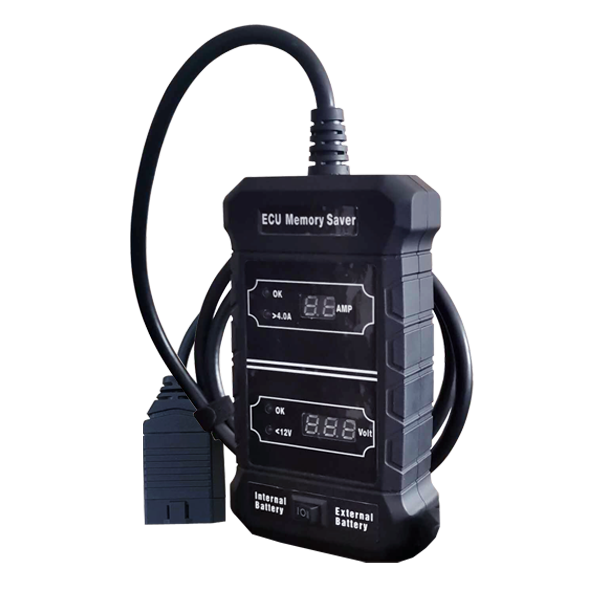

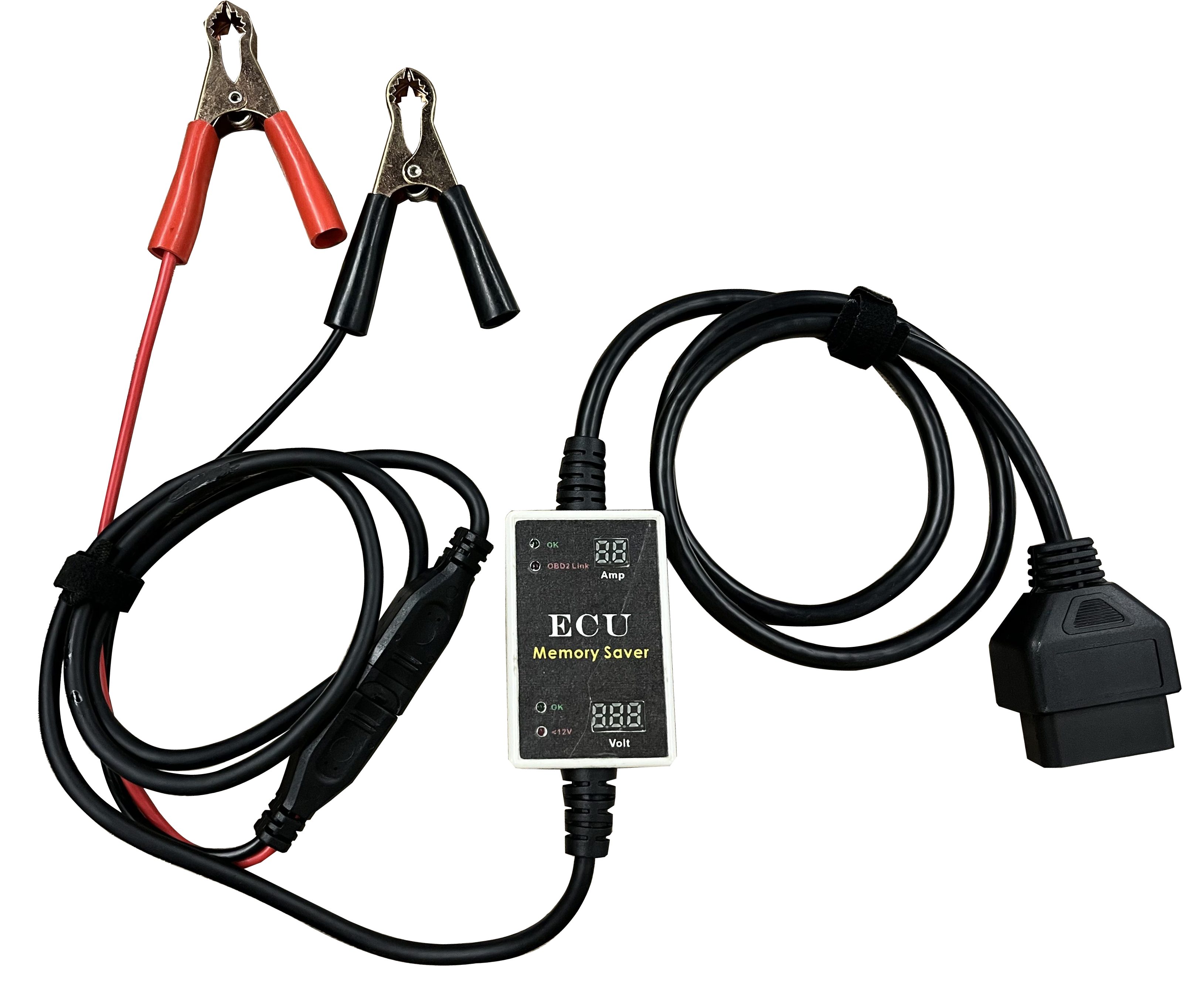

This ECU Memory Saver (EMS) is specially designed to "keep alive" vehicle electronics memory-based systems settings such as clock time, radio channel, seat memory, steering column position, dashboard information etc, when performing battery replacement.

This prevents the vehicle ECU for reset which is costly and time consuming and eliminate the hassle of returning to previous settings.


Exclusive Invention

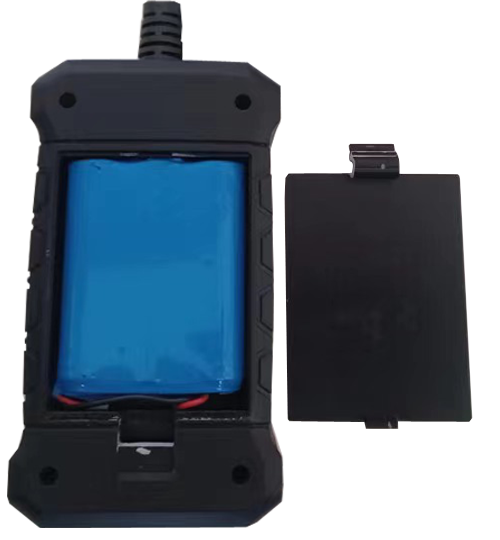

1. Internal battery - the unit comes with 12V lithium battery as main power source. We are the only one in the world using Lithium as internal battery

It provides sufficient power to the ECU during battery replacement, so an external battery is just an option.



Other testers connect to external 12V battery or built with internal lead acid battery which is bulky or plug to cigarette lighter of opposite car.

uploads/image/20230630/1688144068.png

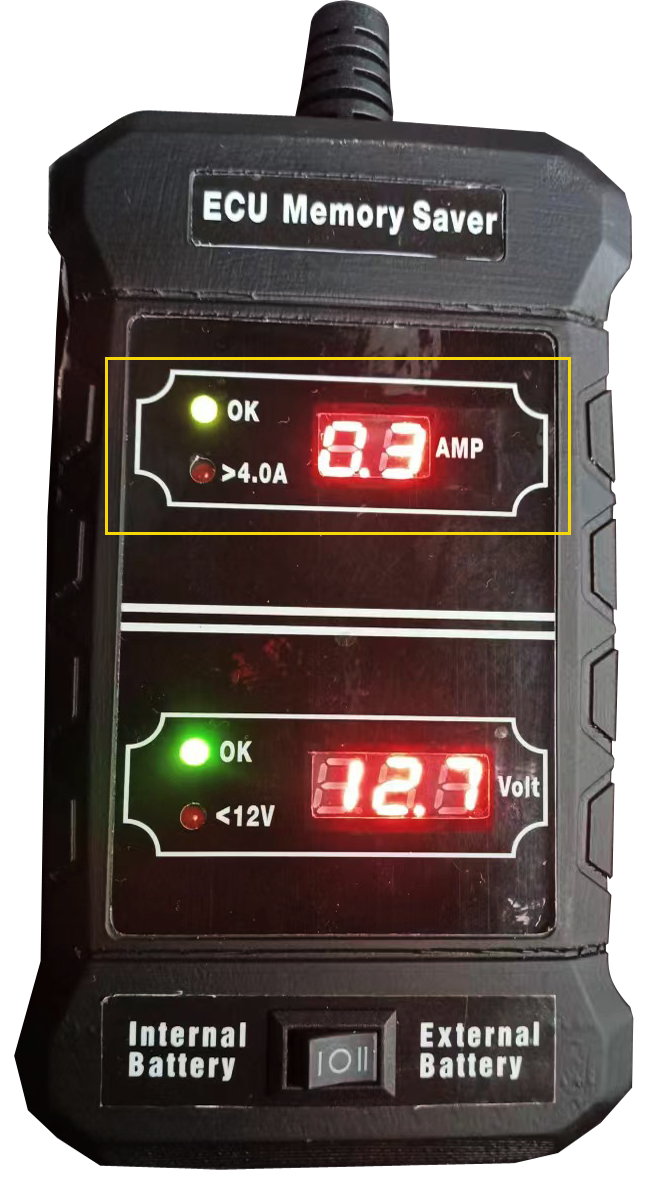

    2. Amps display- indicate the amps draw detected in the car

uploads/image/20230630/1688144777.png


3. It has an option to operate with its Internal replaceable 12V Lithium Rechargeable Battery or with an external 12V vehicle battery if the internal battery is weak by just selecting on the 3-option switch to change over.

a) I = Internal Battery

 Switch the button to “I” to get power from internal 12Vdc Li-ion battery.

uploads/image/20230630/1688139922.jpg


b) II = External Battery

*Use the battery clamp connect to external 12V battery and switch the button to “II” to get power from the battery

uploads/image/20230630/1688137981.jpg

c) O = OFF

*Place the switch position in the middle and the device will be in off state


Unique Features

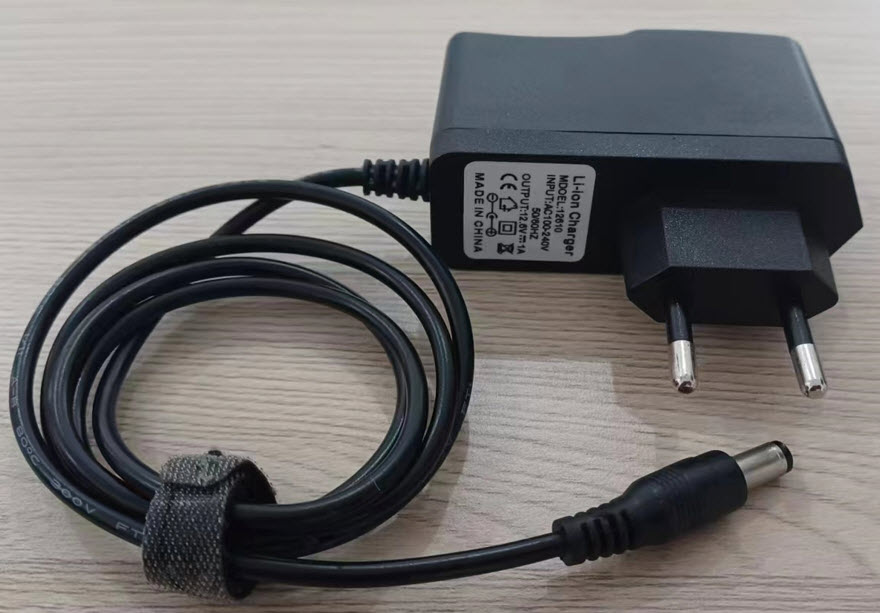

1. Re-chargeable 12V Lithium battery (charger provided)

uploads/image/20230630/1688143670.jpg

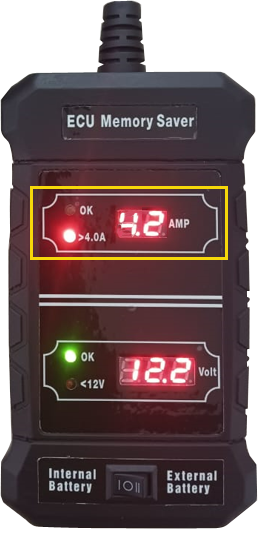

2. > 4.0A indicator LED - lights up when detected Amp draw is more than 4.0A, the power to OBD2 will cut OFF.

uploads/image/20230630/1688147694.png

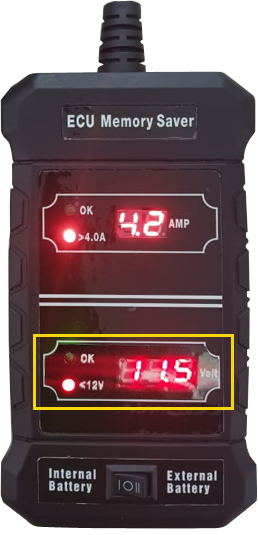

3. < 12.0 indicator LED- will blink and alarm will sound if voltage is less than 12.0V. The power will cut off from ECU Memory Saver to DLC if the voltage drops from 12.0 V to 11.0

uploads/image/20230630/1688138309.png

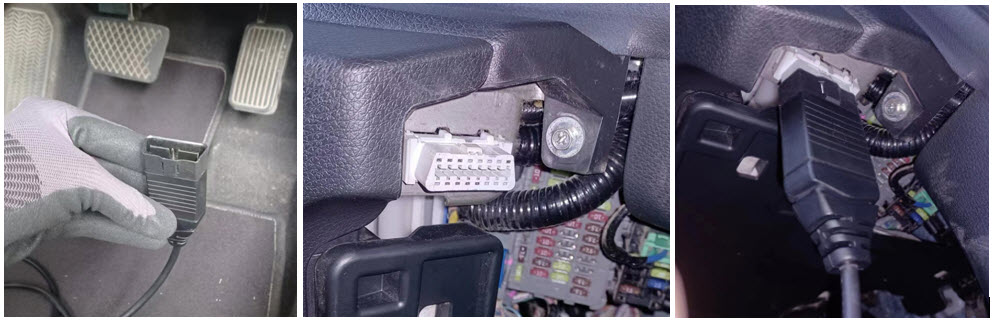

4. Compact size OBD2 connector – the slim OBD connector design allows to plug on all cars OBD2 Diagnostic Link Connector port

uploads/image/20230630/1688142087.jpg

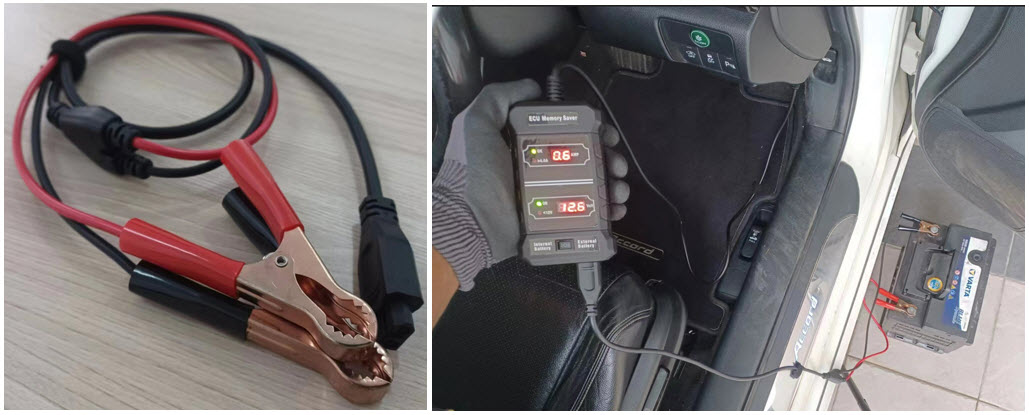

6. Current leak provision - if there is current leak in the car, the battery clamp can be used to connect external battery as alternative power supply.

uploads/image/20230630/1688145493.jpg


Test Functions



The purpose of this ECU Memory Saver (EMS) are:

1. To keep the ECU memory alive during replacement of the car battery where there is a break in power supply during the replacement process. The consequences of memory loss will result in sluggish engine performance where in some cases a diagnostic scanner is needed to retune it back to its operating state.

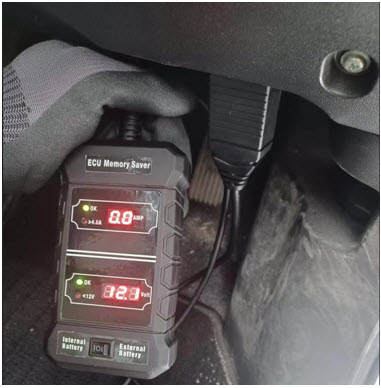

 2. To check any electrical components that draw more than 4 Amps before battery replacement to avoid sudden power loss.

uploads/image/20230630/1688146772.jpg


Specification

Operating Voltage            :             9V ~ 15V DC (max)

DC Volts Accuracy           :            ± 1% Reading

Internal battery                 :             12VDC Li-ion Battery (2000mAh) Re-chargeable

Safety                               :             Reverse polarity protected.

Working Temperature       :             0ºC (32°F) ~ 50ºC (122°F)

Working Humidity             :             10% ~ 80 %



Frequently Asked Questions (FAQ)


Q: What is the capacity of the internal battery?  How long it can be used?

A: The capacity of the internal battery is 2000mA and it is supposed to be used only for data saver function when changing the weak car battery.

When there is current leakage (Amp draw) in the car detected, use the battery clamp and connect to a 12V external battery in order to support high Amp consumption, as this will deplete the power of internal battery immediately.



Q: What kind of over voltage protection do you have in case if client start the car with obd connected to the car?

A: Even our tester is for 12V car battery and will not support 24V, but we have over voltage protection in the PCB board which can take 28V. Therefore, in case if client start the car with obd connected to the car, it will not have any effect on our tester. But it will cause problem for the battery as the charging board in the battery maybe damaged for over 13V input.



The car battery acts like a stabilizer, it will filter the excessive amp before it provides to other electrical components.  The amp return to the OBD port is 1.2 amps. Our device can withstand up to 4 amps.
