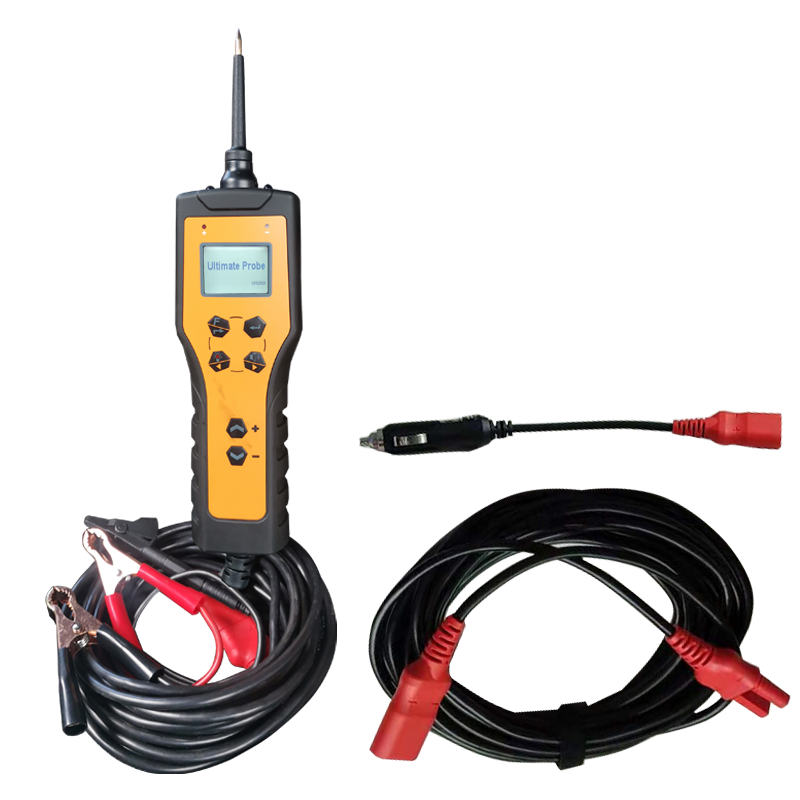

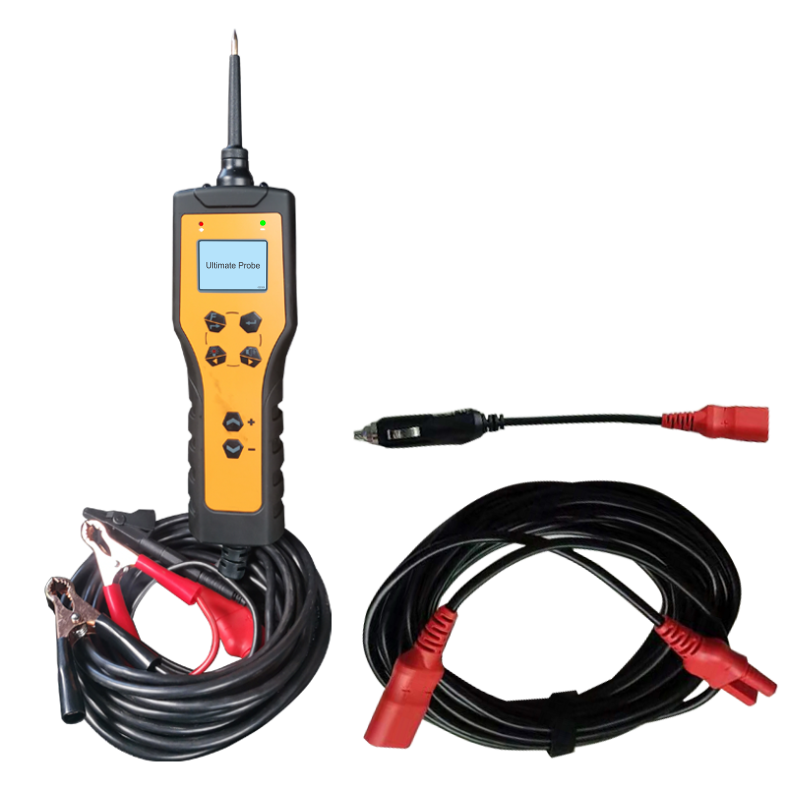

Ultimate Probe

The Ultimate Probe is specially designed for assisting Technicians in speedy diagnosing of 12V to 24V automotive electrical system faults. Once it is connected to the vehicle’s battery, it will instantly display the battery voltage (input power) and it is ready to perform the following test functions:

Exclusive Invention

This Test Probe can do multiple functions of measuring the voltage, resistance, and frequency. It can also capture the highest and lowest voltage detected and can switch to different modes to measure the difference between the positive and negative peak voltage. The Threshold Setting is used for adjusting the threshold voltage level for Peak to Peak Detection. It can supply voltage using Power Feed switching mode: Moment, Latch, or Pulse.

Unique Features

1. On Hold reading of the Test Result

Test the circuit and the tester will instantly display and freezes (hold) the reading

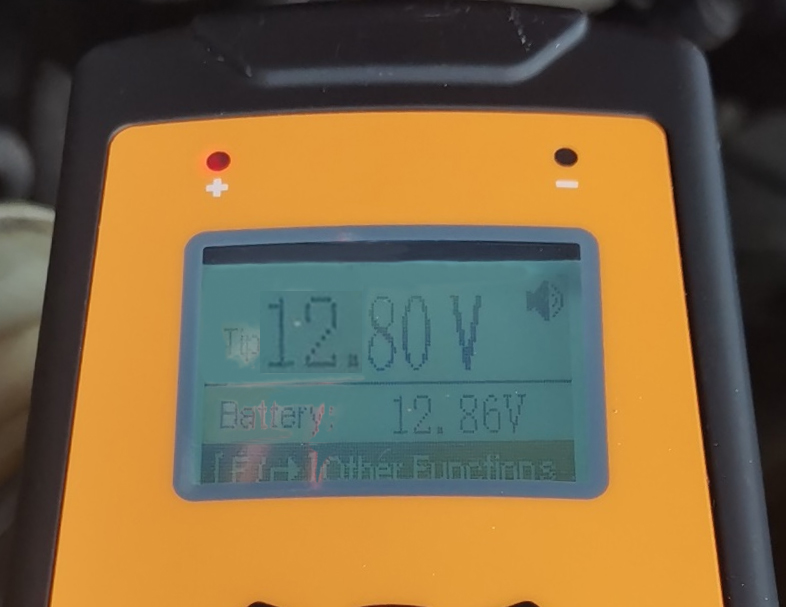

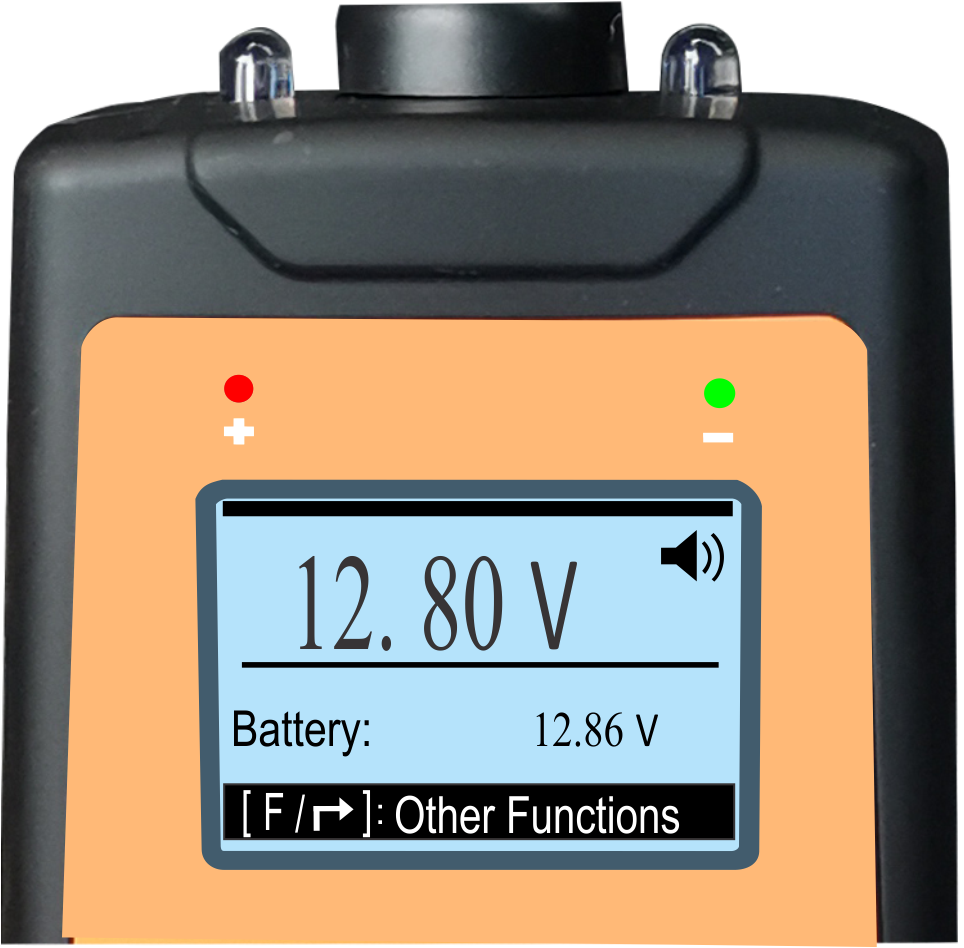

2. Show Input Battery Voltage

3. Overload Protection

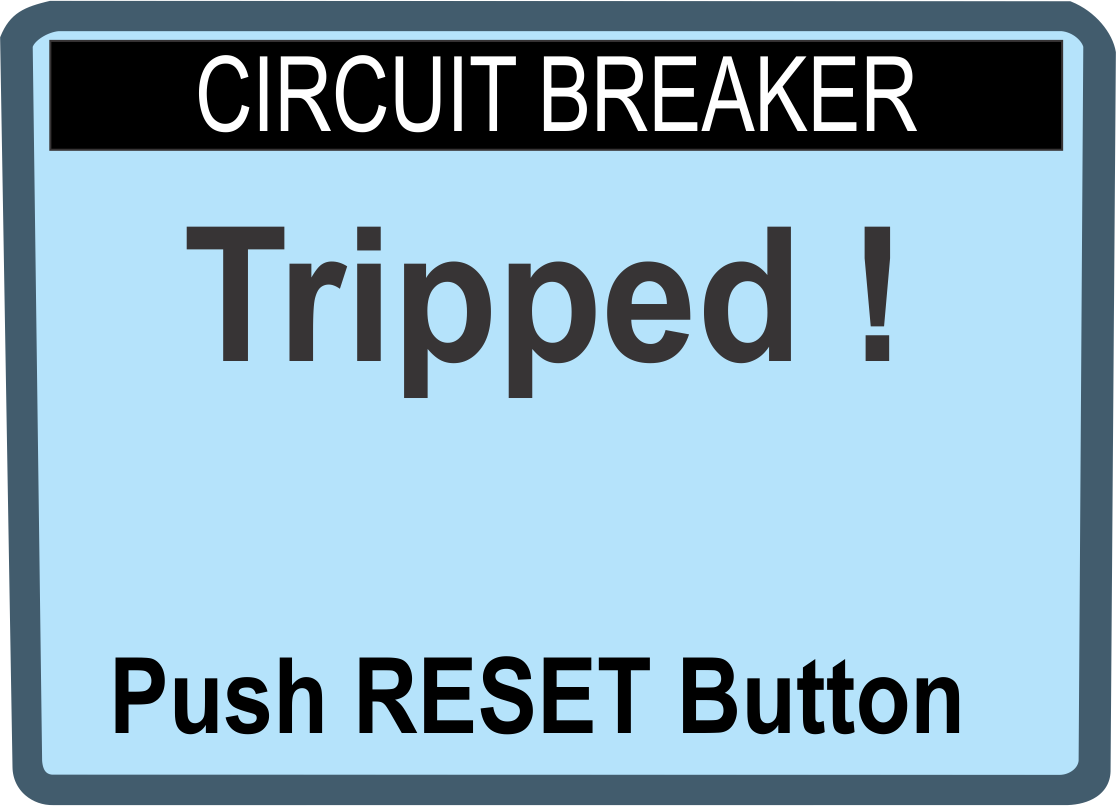

The Ultimate Probe is equipped with built-in overload protection circuit breaker. In event that the circuit breaker is tripped, the circuit will cut OFF instantly and the LCD screen will display as seen

4. Torch Light

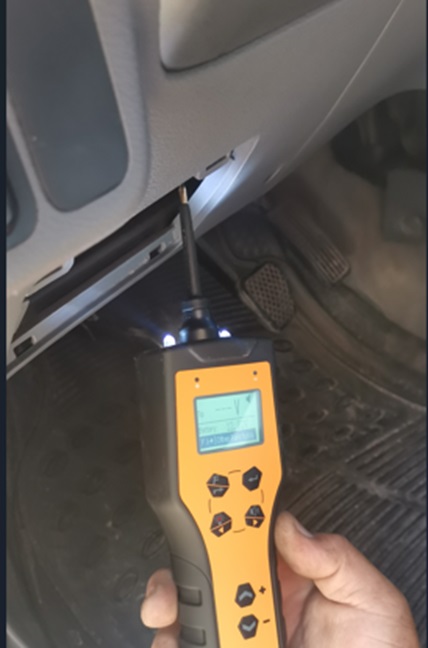

The Probe comes with two LED torch light use to illuminate when testing circuits in dark areas.

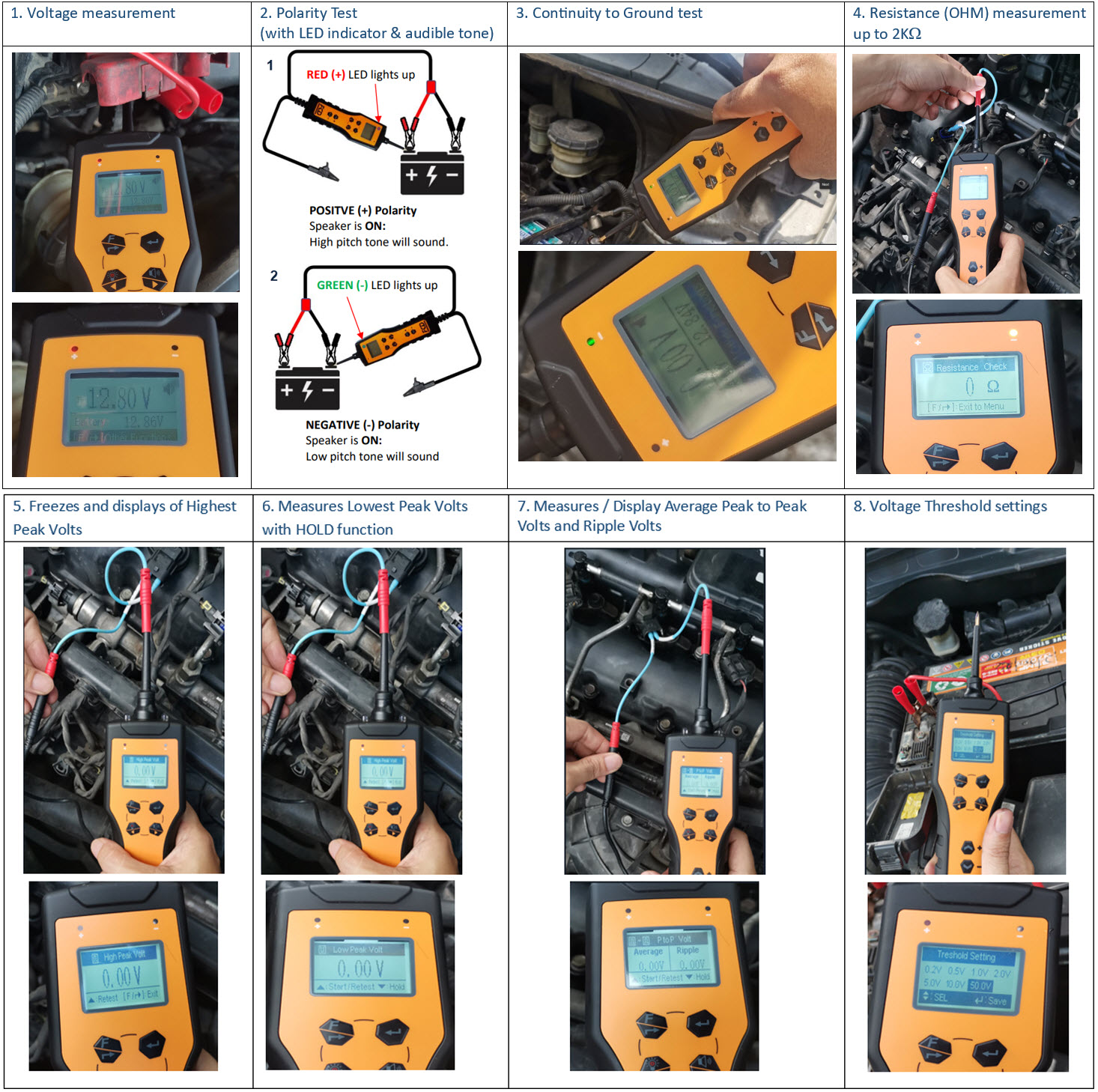

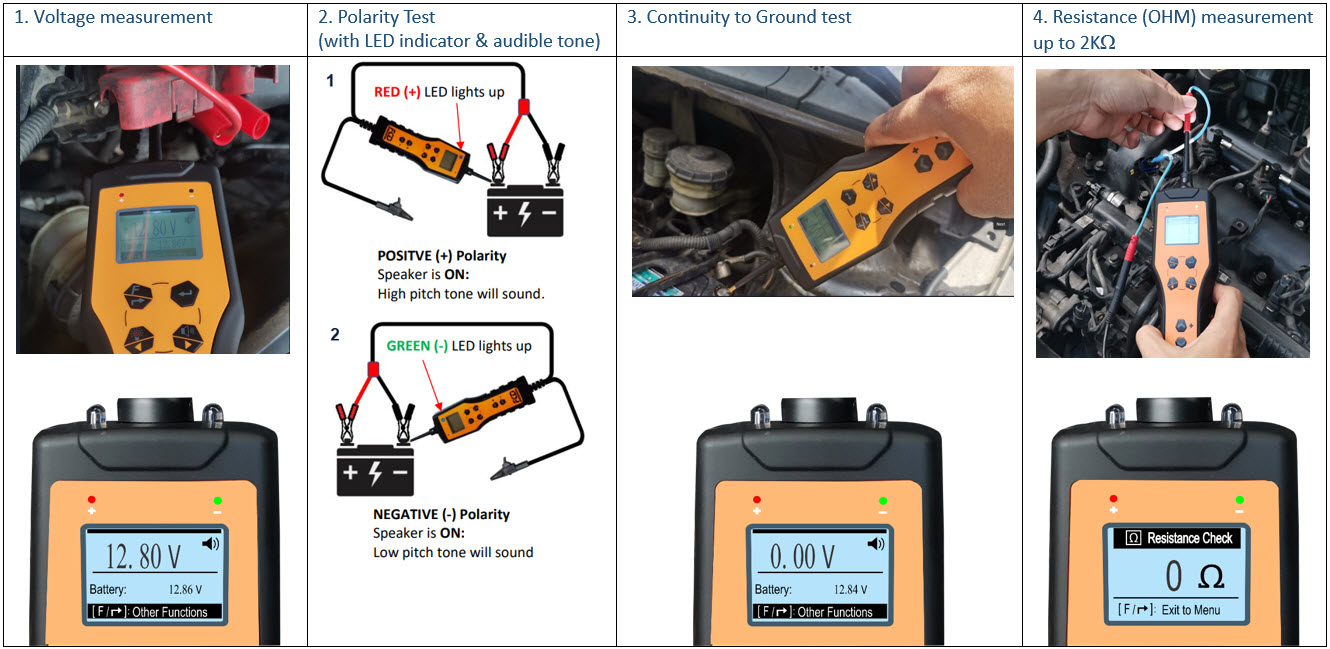

Functions

Technical Specifications:

Power Input……………………………………….………DC 12V or 24V Battery

Minimum Input Operating Power

DCV Measurement Range…………………….……0.00Vdc to 70.00Vdc maximum

Accuracy……………………………………………………. +/- 2%

Resistance Measurement Range…………….…1 W to 2KW (2,000W) maximum

Accuracy………………………………………………….... +/- 5%

Frequency (Hz) Measurement Range….….    1Hz to 99,999 Hz @ >2.0 V (max)

Frequency Volts display ……………………………. V (max)

Accuracy………………………………………………….... +/- 0.2%

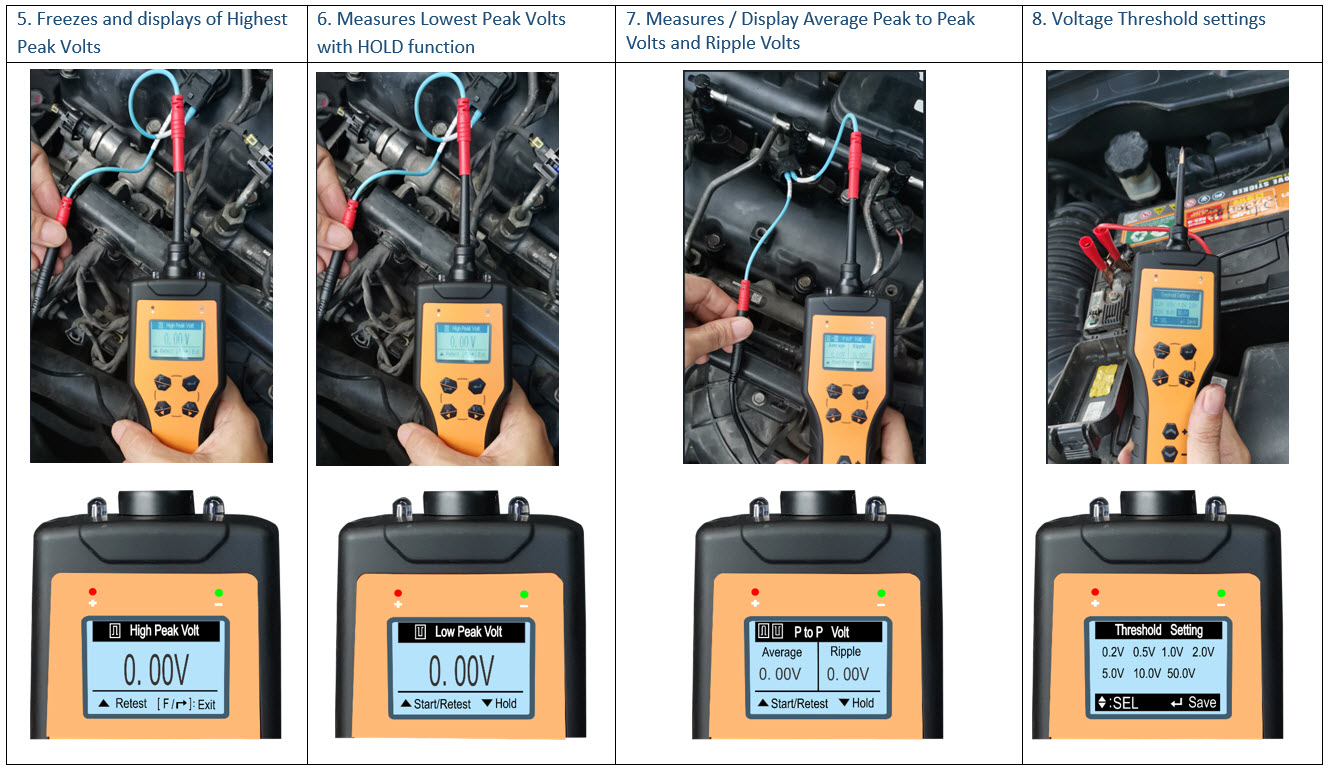

Peak to Peak Voltage Measurement…………. High Peak Volts, Low Peak Volts & Average (AC Ripples)  Volts with HOLD (Freeze) display functions

Continuity to Ground Measurement:

                1^st level (>2K to<20KW)…………...…... Display (0.00V) is enabled

                2^nd level (<2KW )……………………………. Green LED & Display (0.00V) are enabled

Accuracy………………………………………………….... +/-5%

Threshold Voltage ………….……………….…...…. Default:  Set at 50V

Other selectable Settings …………….…. …..…… 0.2V, 0.5V, 1.0V, 2.0V, 5.0V, 10V & 50V

Polarity Detection (Tip Voltage) …………….… Within +/- 0.5V of input voltage supply

Indications…………………………………………...……. RED or GREEN indicator LED and TONE will turn ON.

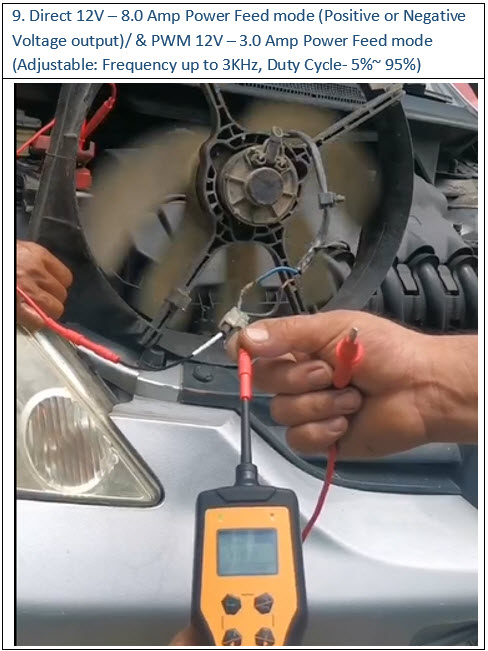

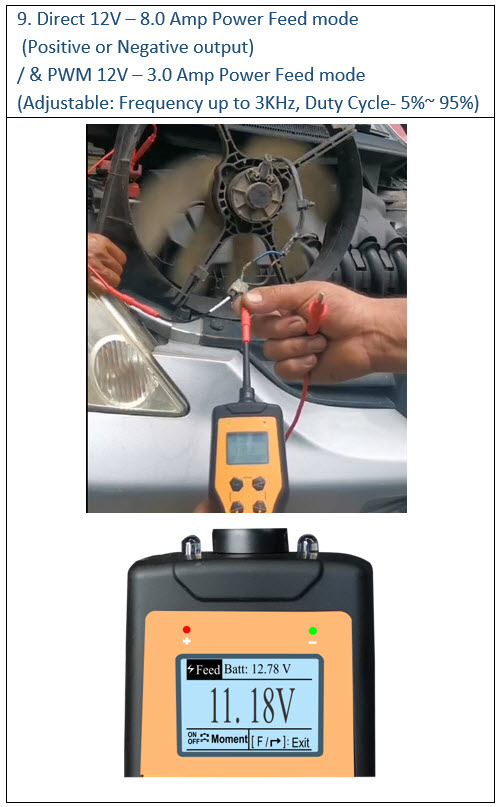

Direct Power Feed Output Voltage...………... 12Vdc depends on input battery supply volts

Current output ……………………………………...…… 8.0 Amps Maximum

Power Feed Output selection……………………… Positivep (+) Voltage feed or Negative q(-) Voltage feed

Power Output Switching Modes:

MOMENT.……………………………………….…….… Press p(+) or q(-) and hold: Power ON; Release: OFF

LATCH……. ………………………………………………...Press p(+) or q(-) once: Power stay ON; Press again: OFF

PULSE (0.5 sec interval) ……………...……….……Press p(+) or q(-) once: Pulse stay ON; Press again: OFF

PWM Power Feed Output Voltage ………….12Vdc depends on input battery supply.

Current Output ………………………………………. 3.0 Amps Maximum

Adjustment Frequency Range……………….... 1Hz to 3,000 Hz (3KHz), Adjustment Resolution: 1 Hz

Adjustment Duty Cycle Range ………………… 5% ~ 95%

Over Load Protection …….……………….……….8.0 Amps [Manual RESET] Circuit Breaker

Reverse Polarity Protection……………………… Tester will not power ON when connected in reverse polarity.

Working Temperature: ……………….…………...0 °C (32°F) ~ 50 °C (122 °F).

Working Humidity: ……………………………………10% ~ 80 %
