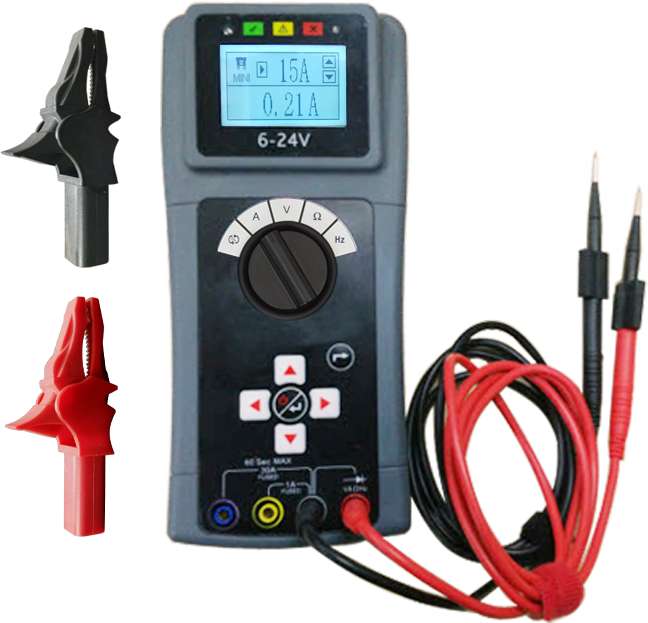

This Automotive Multi Meter (AMM) was designed solely for Automotive Technicians to troubleshoot all electrical problems in the vehicle. Applicable on 6V, 12V or 24V system, also it can be used to check Amps draw directly at the fuse (Mini, ATC or Maxi Fuses) without  removing it to measure parasitic drain current using parallel method at the fuse box.


Exclusive Invention

This Multi-meter has Two Options when performing Amps Draw Measurement:

1.    Direct Test Amp measurement- Test probes placed parallel to the fuse during measurement.

2.    In-line Amp Draw test with the circuit.



Unique Features

  • Direct Amp Draw measurement - it measures Amp draw directly from the two expose points of the fuse (either Mini, ATC or Maxi) while the circuit is operating.

       The test is is done without removing the fuse on the fuse box, the tester will display  results and hold the reading during testing.

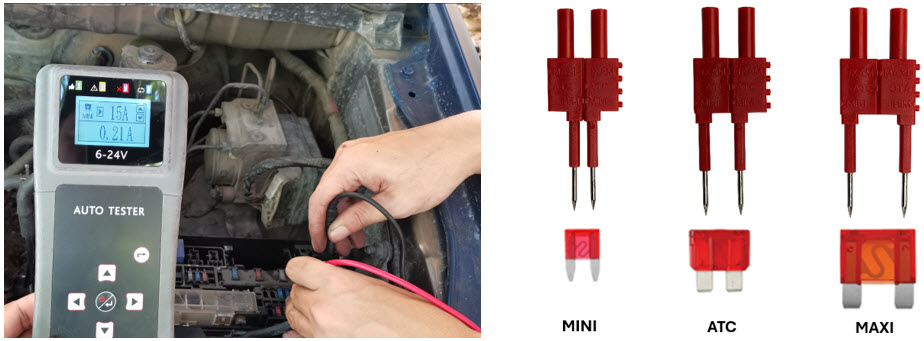

Supplied with Detachable probes which can be set according to the test points of a fuse by sliding the two probes together to suit Mini, ATC, or Maxi fuses.

uploads/image/20240303/1709456021.jpg

  • In-line Amp Draw Test with the circuit

This test measure Amps in line (in series) with the operating circuit.

In two ranges: 1mA ~ 999 mA and 1A ~ 30A.

The smaller range (1mA~999mA) is very useful in measuring parasitic drain when the vehicle is OFF.

The larger range (from 1A up to 30A max) is for testing fans, wiper motors, etc.


Additional Features

  • On / Off Button

  •  Zero Calibration

  •  LED Traffic Light Indicator

  •  Result – Hold Display

  •  12/24 System Auto Selection


Functions

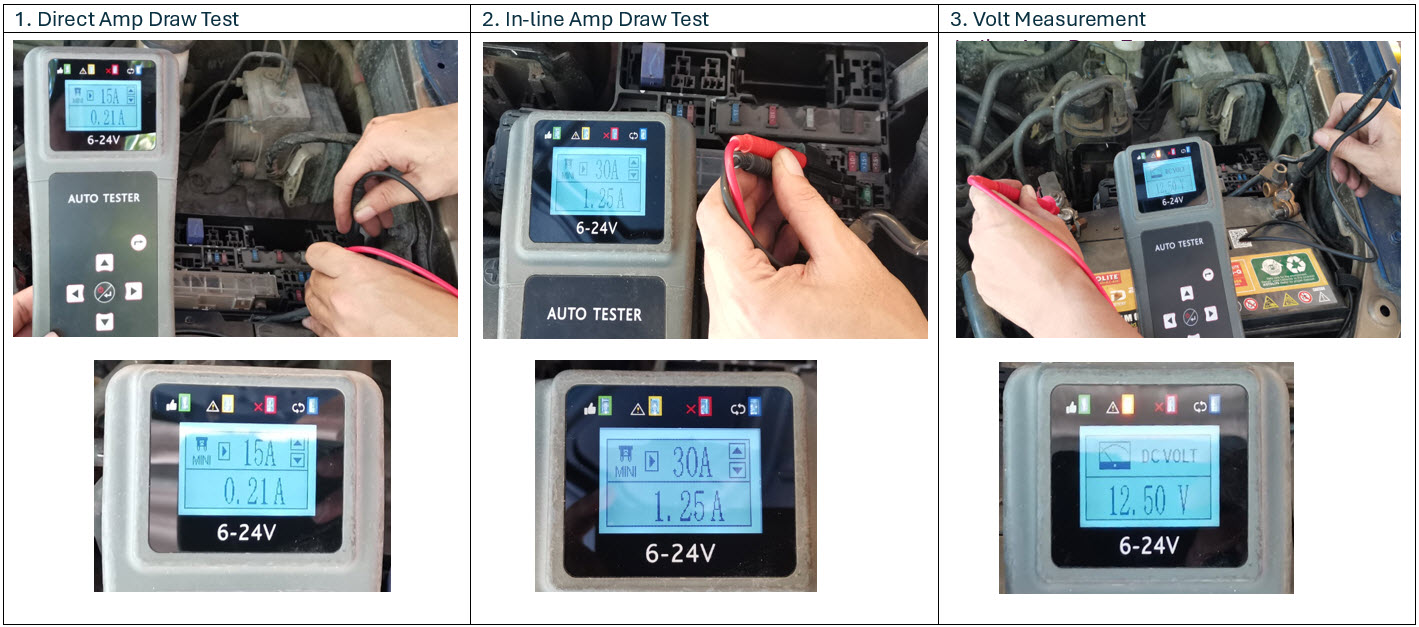

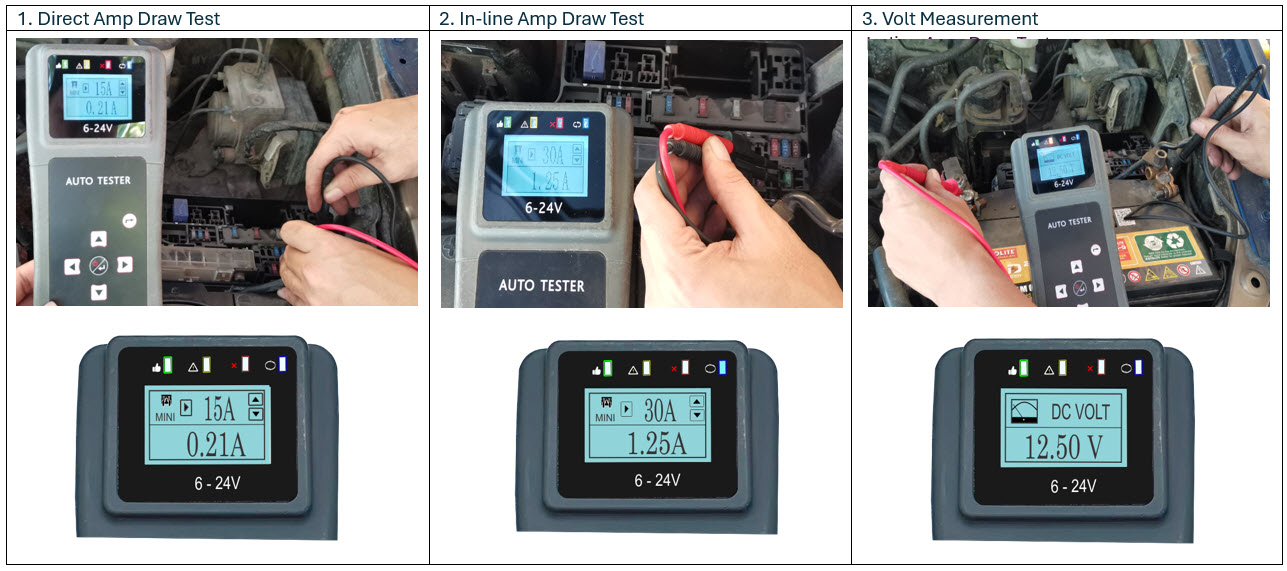

uploads/image/20240303/1709458014.jpg

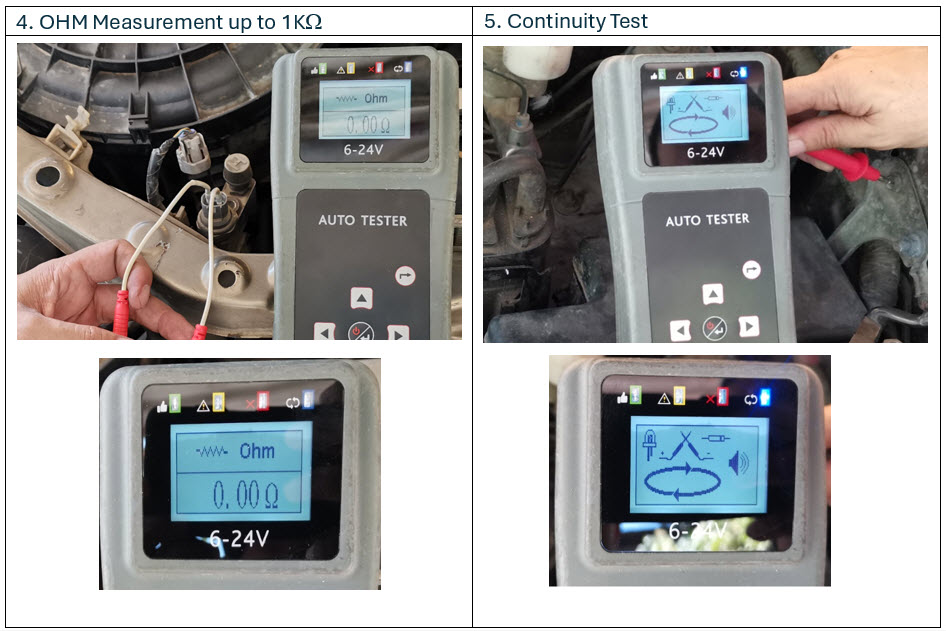

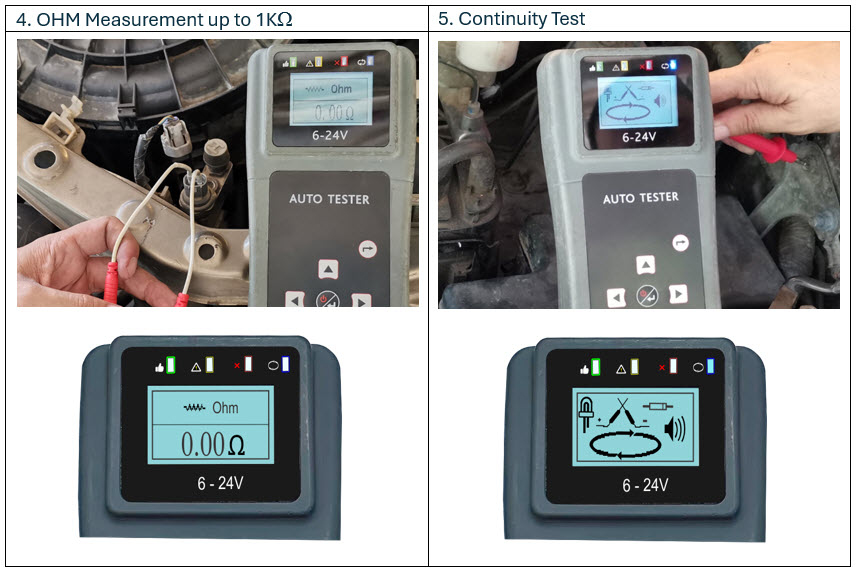

uploads/image/20240303/1709457700.jpg

Other Functions

1.  12V /24V System Cranking Volt Test

2.     Normal and Smart 12V/24V Alternator Charging Volt Test

3.     FREQUENCY (Hz) measurement

4.     DUTY CYCLE (%) measurement

5.     Diode Test

6.     LED Test


Technical Specifications

Applicable Voltage Systems: …………………………………. 6V, 12V & 24V Batteries

Amperage Measurement:

Probes Parallel to Fuse test Method:

          Mini ATM Fuse: ……………………..….…………. 3A to 30A (Max.)

          Standard ATC Fuse: …………………………….... 3A to 40A (Max.)

          Maxi Fuse: ……………………………………………. 20A to 80A (Max.)

          Display Resolution: ……………………………..….……….. 0.01A

          Accuracy…………………………………………………….……..+/- 3% Display

          Probes in series with the circuit test Method:

Parasitic Drain Test range: ………………………….……1mA ~ 999mA (Max.)

          Resolution: …………………………….…………………….…… 1mA

          Accuracy …………………………………………………………… +/- 1% Display

          Normal Amp Draw Test range: ……………………..1.00A ~ 30.00A (Max.)

          Resolution: ………………………………………………..………. 0.01A

          Accuracy ……………………………………………………….…… +/- 2% Display



          DC Voltage Measurement range: ………………… 0.00V to 50.00V (Max.)

          Green LED colour – ON: …………………….…………………. Good Results

          Yellow LED colour – ON: ……………….……………………… Marginal

          Red LED colour – ON: ………………………… Bad Results, Needs attention

          Cranking Volt Test with auto HOLD ……………………… 12/24V Starter

                      Volts Display Resolution: ………………………………….. 0.01V

                      Accuracy: ……………………………………………………….... +/- 2% Display



          OHM [] Measurement range: …………………….…0.00 to 1.0M (Max.)

                      Ohm Range selection: ……………………………………….. Automatic

                      Ohm Display Resolution: ……………………………...….. 0.01

                      Accuracy: ………………………………………………….….…... +/- 2%



          Frequency Measurement range: ………….……….… 1Hz to 20 KHz (Max.)

                      Accuracy: ……………………………………………….…….…... +/- 1Hz

                      Peak to Peak Volts: …………………………………. 2.8V ~ 15.0V (Max.)



Duty Cycle Measurement range: (Peak to Peak Volts @2.8V ~ 15.0V max)

                      From 1 Hz to 1 KHz ……………………..…………………….. 1% ~ 99%

                      Accuracy: …………………………………………….….…….…... +/- 1%

                      Above 1 KHz to 10 KHz ………………………………….…... 5% ~ 99%

                      Accuracy: …………………………………………….….…….…... +/- 2%

                      Above 10 KHz to 20 KHz ……………….………………...... 10% ~ 90%

                      Accuracy: …………………………………………….….…….…... +/- 5%



Continuity / Diode Test: ………………………………………… 0 ~ 500 (Max.)

LED Test: …………………………………….……….……….……….. Input Volts: 3.5V (Max.)
