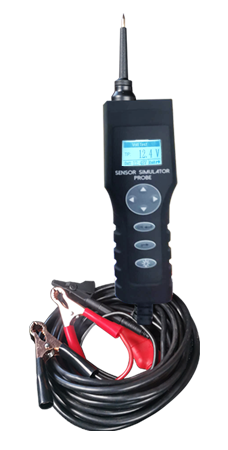

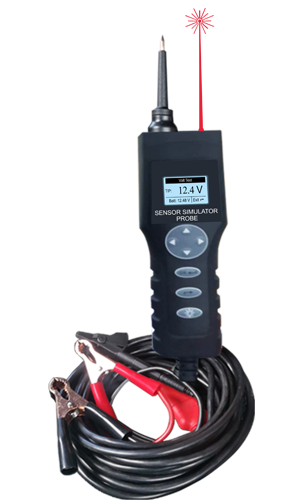

Sensor Simulator Probe

 uploads/image/20240622/1719049438.png

The Sensor Simulator Probe with Tachometer is used to simulate the signals generated by different  sensors to distinguish the faults that lie in the sensor itself or are related to the connector or wires.

Also, can be used to perform the functions of RPM measurement and Count reading.

Applicable for car (12V) and truck (24V).


Exclusive Invention

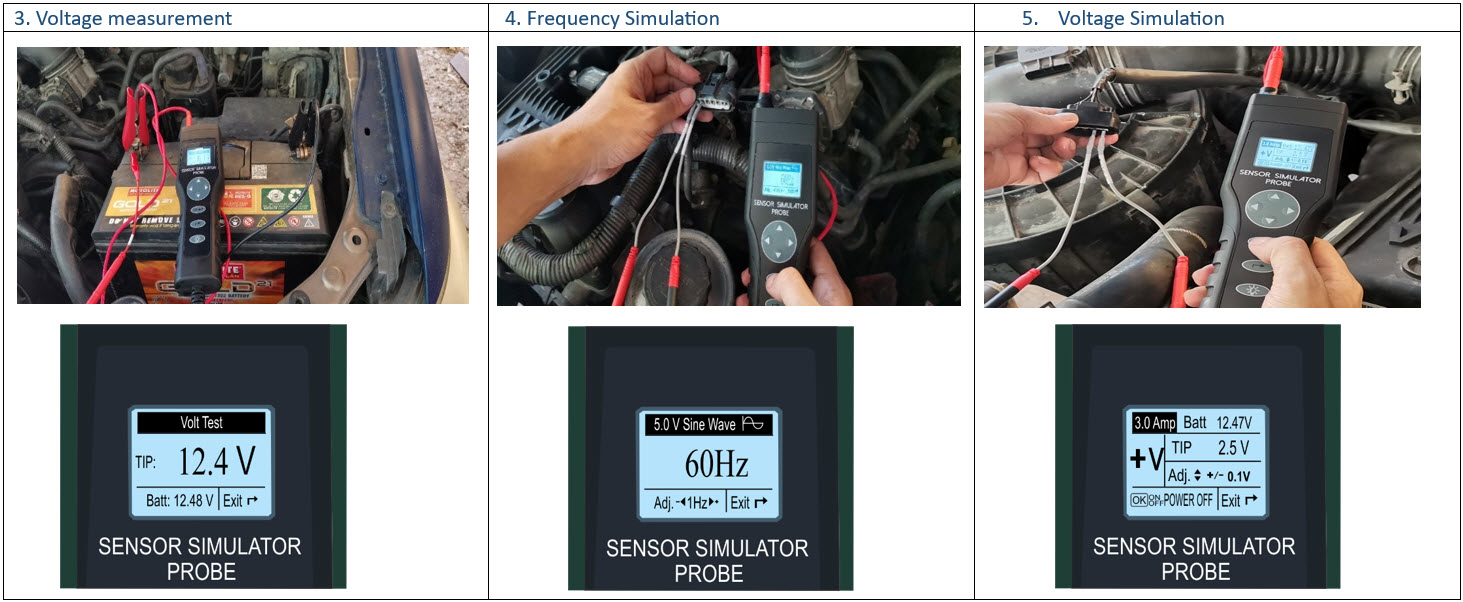

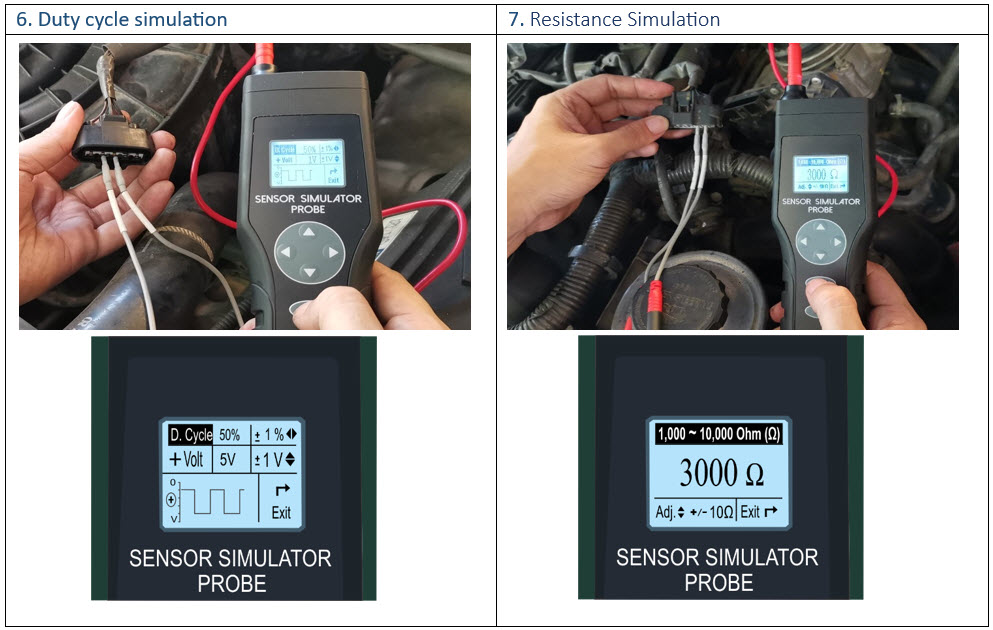

1. As Test Probe (provides Volts, Frequency, Resistance & Duty cycle measurement)

2. and Tachometer (RPM measurement & count)


This Probe works as two devices in one. While other testers only work either one, using it eliminates redundant testers and very useful in electrical diagnosis as can easily detect faults in the sensors or in the circuits.


Unique Features

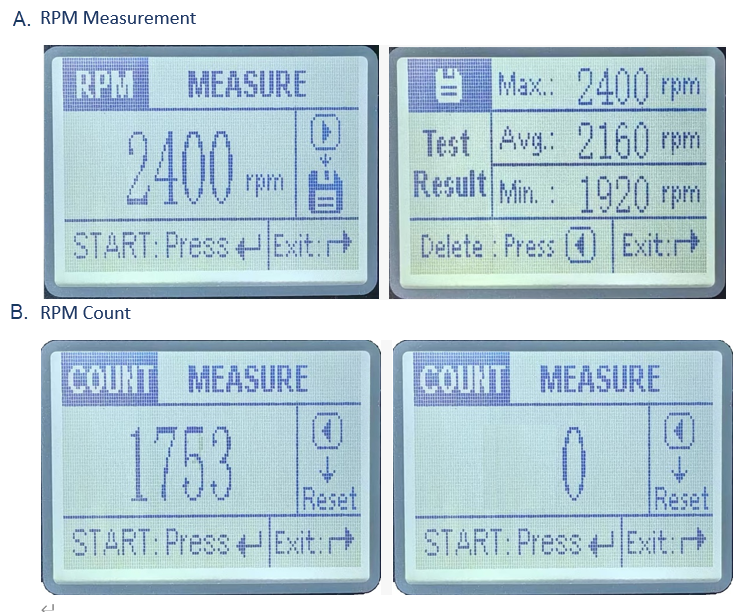

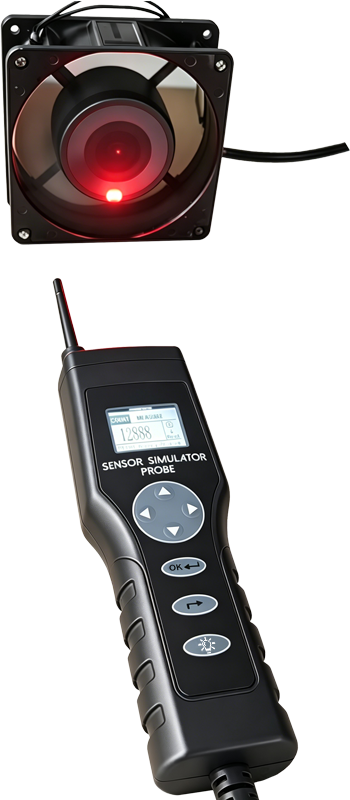

1. As Tachometer – RPM Measurement & RPM Count

uploads/image/20250421/1745200787.png

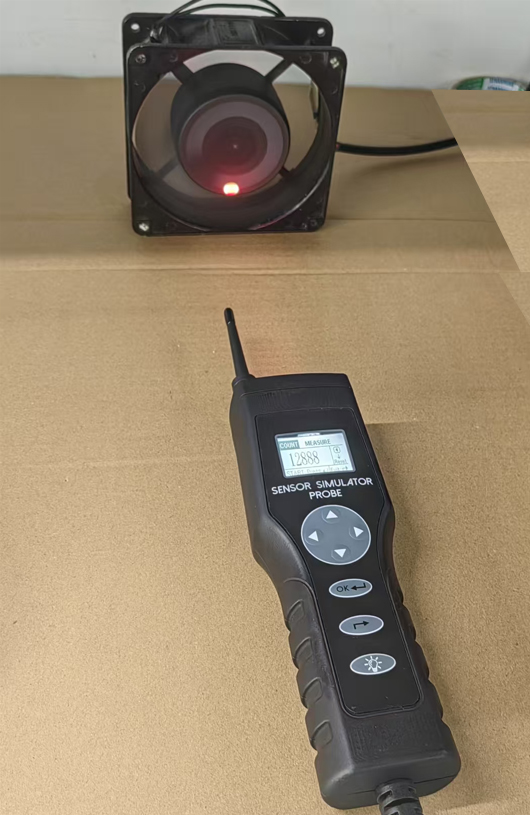

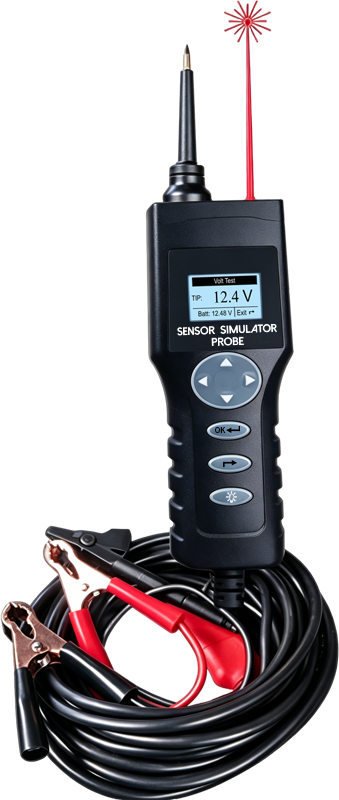

2. Utilize laser technology measurement

uploads/image/20250421/1745206484.jpg



Functions

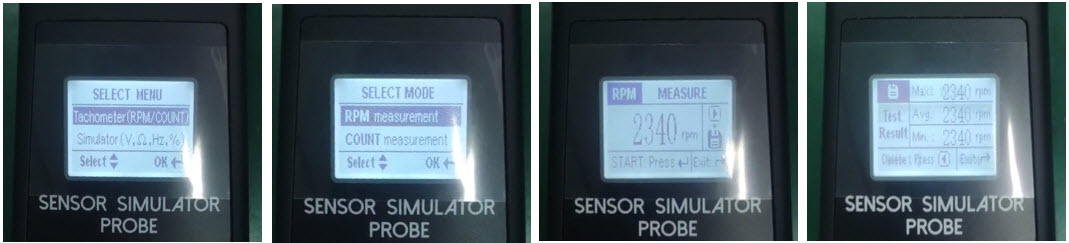

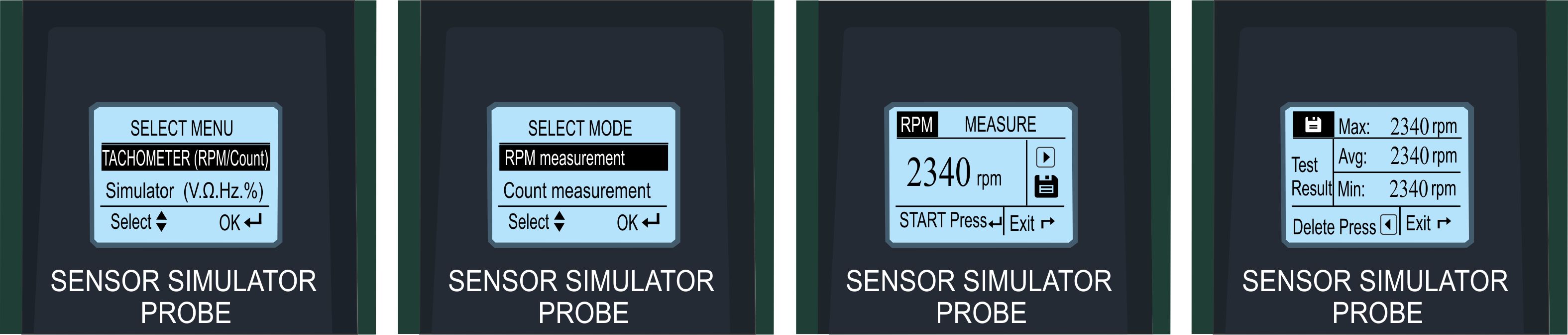

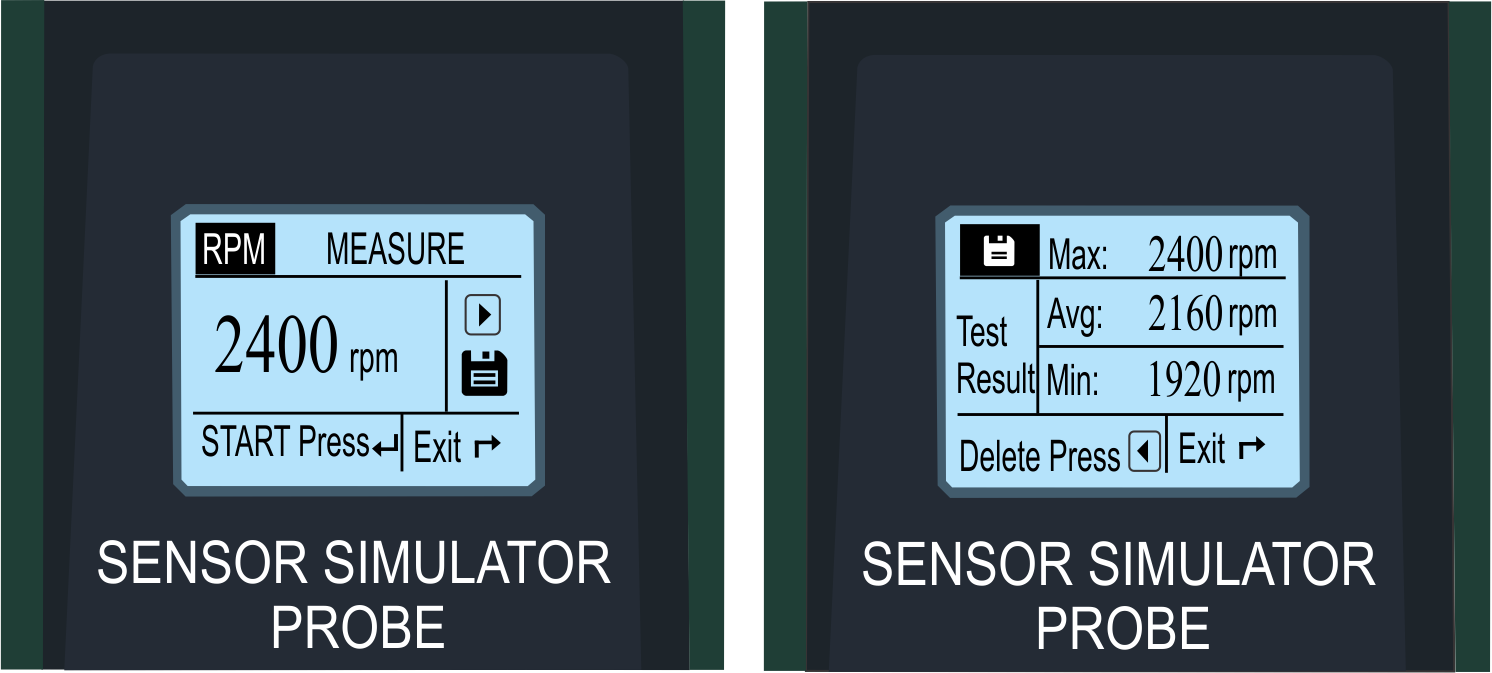

1. Tachometer (RPM MODE)

uploads/image/20240225/1708851190.jpg

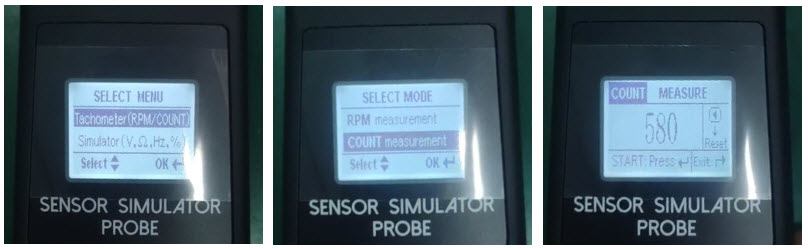

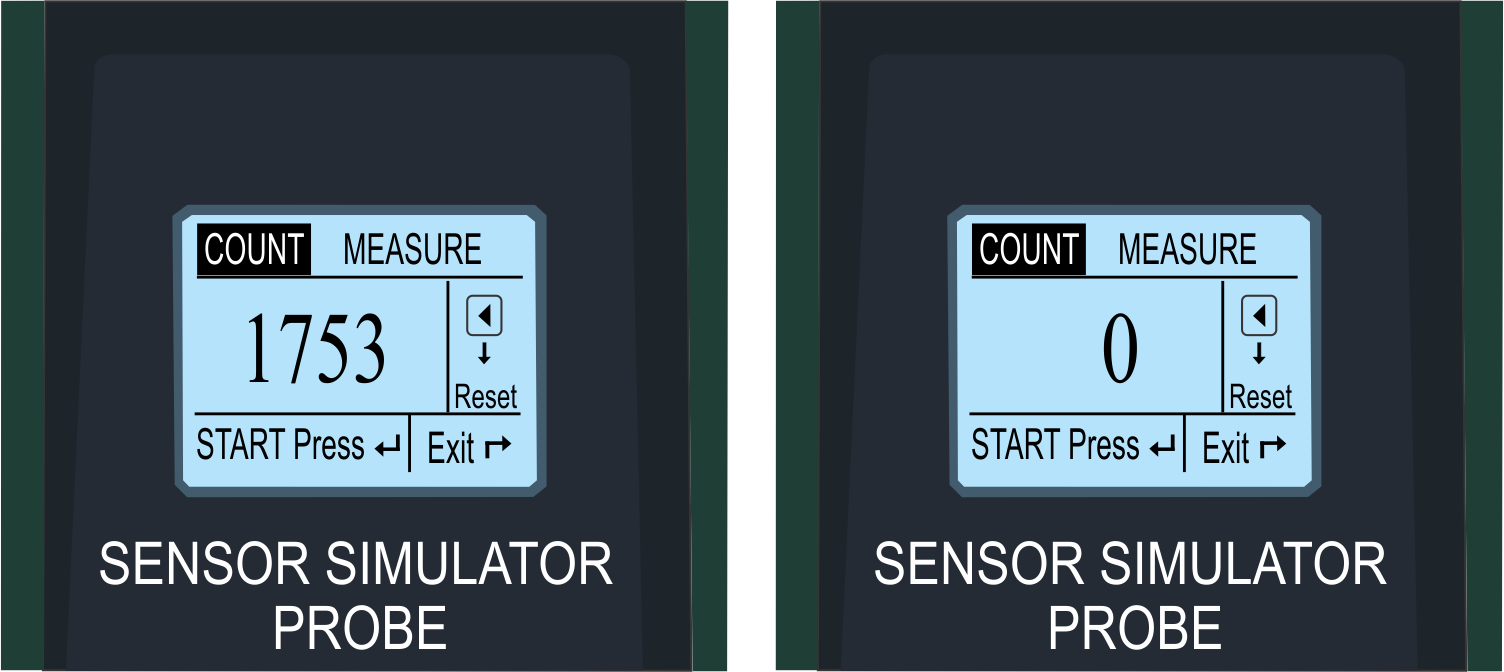

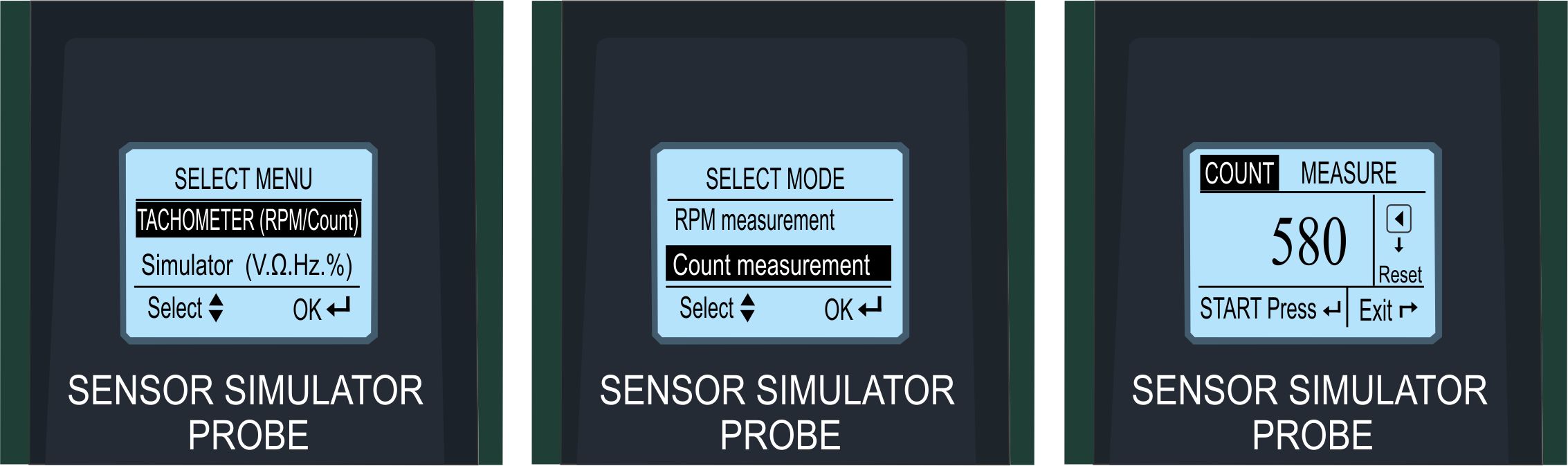

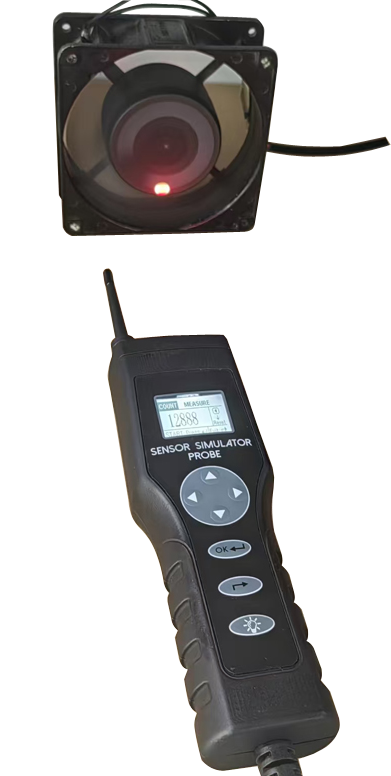

2. Tachometer (Count Mode)

uploads/image/20240225/1708848091.jpg


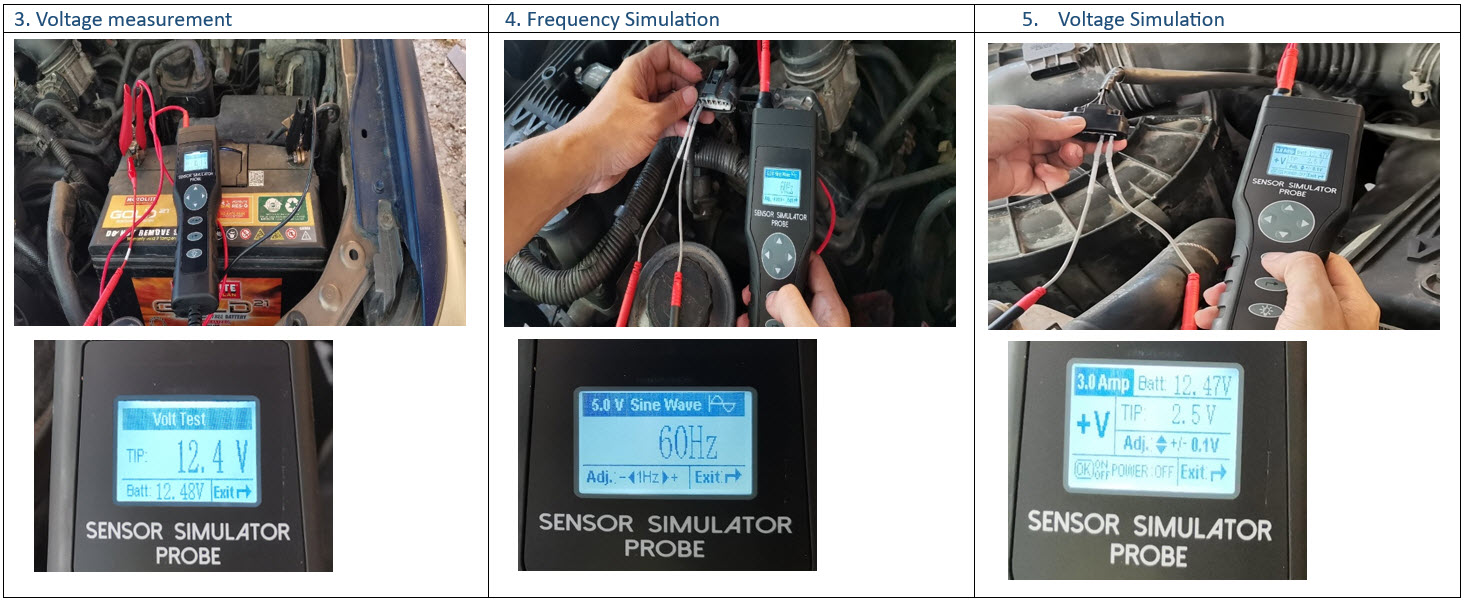

uploads/image/20240225/1708848277.jpg

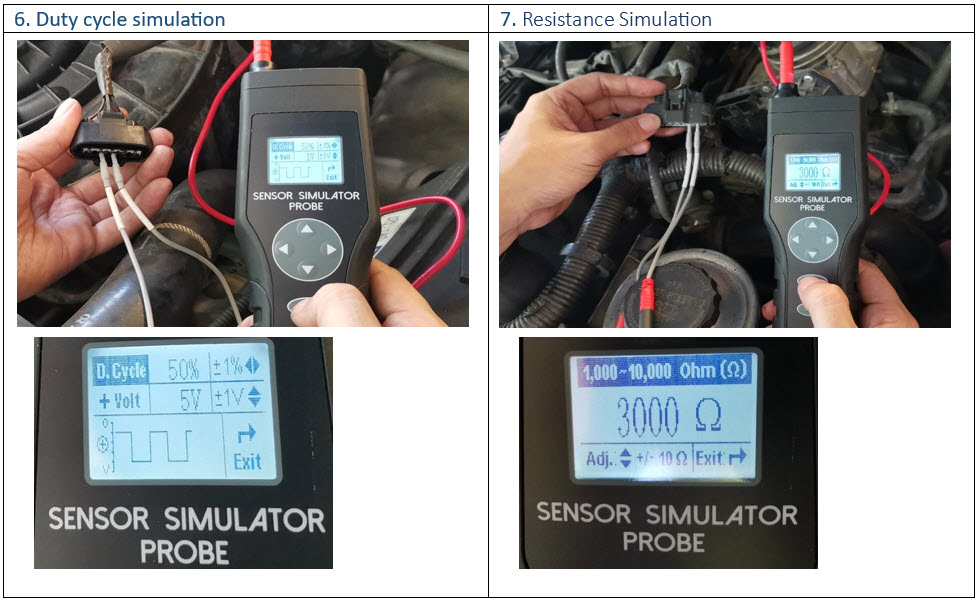

uploads/image/20240225/1708852808.jpg


Technical Specifications:

Operating Voltage …………………………………………………...9V DC to 30 V DC Max

Display……………………………………………………………………….LCD Screen (128 x 64)

Voltage measurement range ……………………………………Up to 100 Vdc max,

Accuracy…………………………………………………………………. +/- 2% + 1 digit

Tachometer:

RPM display……………………………………………………………. 99999 (Maximum)

Range……………………………………………………………………… 10 ~ 99999 rpm

Resolution………………………………………………………………. 0.1 rpm

Range……………………………………………………………………… 10000 ~ 99999 rpm

Resolution………………………………………………………………. 1 rpm

Accuracy…………………………………………………………………. +/- 0.04% + 2 digit

COUNT display …………………………………………………………. 99999 (Maximum)

Range……………………………………………………………………… 0 ~ 99999

Resolution………………………………………………………………. 1 digit

Maximum input frequency……………………………………… 10K Hz, 5% pulse width.

Over Range display ……….………………………….……………. Over Limit.

Refresh rate ……………………………………………………………. 1s ~ 7s (according to rotating rate)

Sensor type ……………………………………………………………. Laser light and Photo diode

Measuring distance ………………………………………………... 50mm to 200 mm.


Simulated Voltages:

Max. Output Current: 3.0 Amp

Positive Voltage (+) Output Range: [0.2 Vdc to 7.0 Vdc]

Adjustment Resolution …………….…………………………...0.1V

Accuracy…….…………………………………………………….…… +/- 2%

Max. Output Current for both (+V) and (-V): 150 mA

Positive Voltage (+) Output Range: [0.0 Vdc to 12.0 Vdc]

Adjustment Resolution…………………………………………...0.1V

Accuracy…….…………………………………………………….…… +/- 2%

Negative voltage (-) Output Range: [0.0 Vdc to -12.0 Vdc]

Adjustment Resolution……………...…………………………... -0.1V

Accuracy…….……………………………………………………….… +/- 2%
