Battery System Analyser LiFeP04 24V graphic **

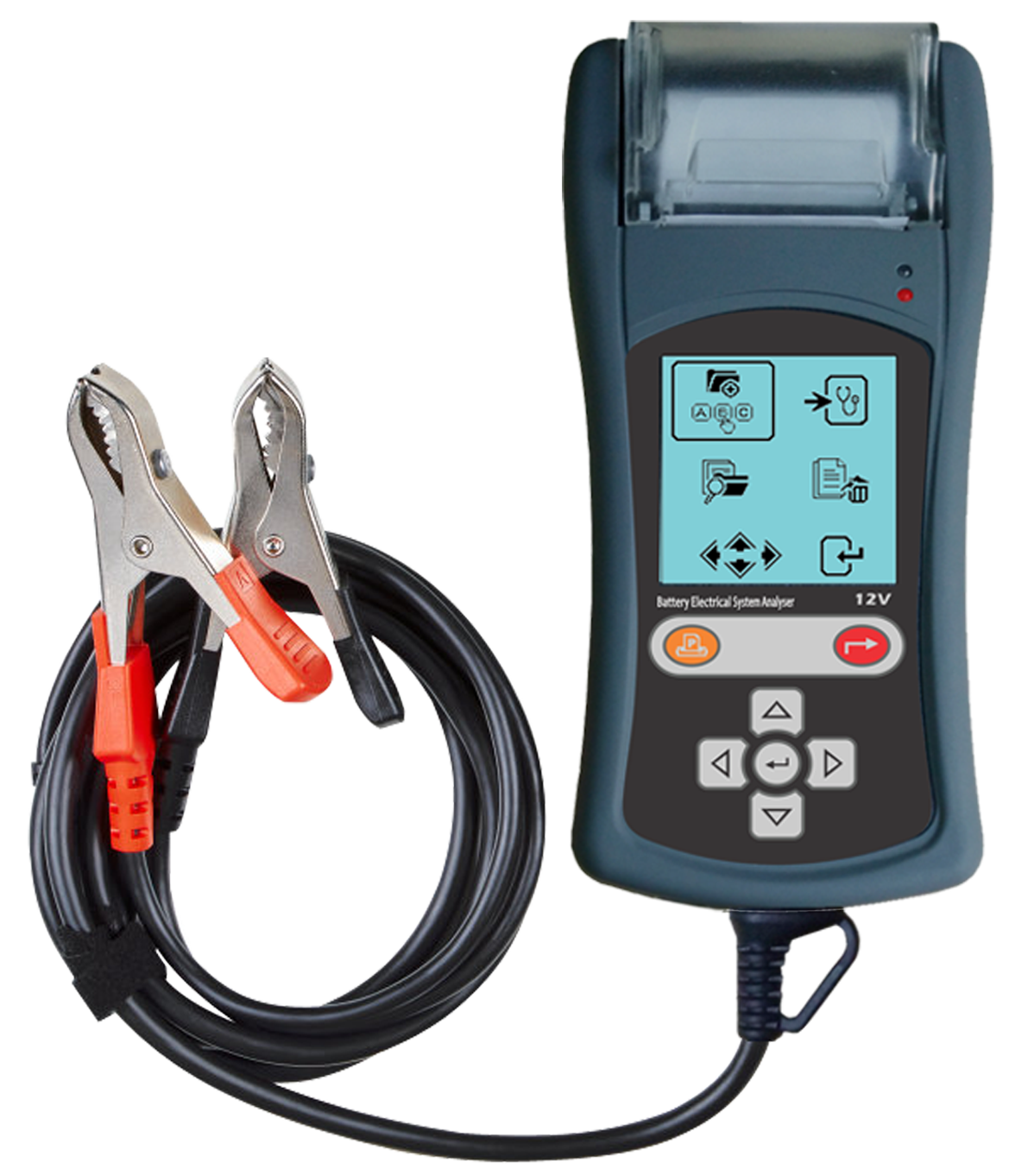

uploads/image/20231207/1701965888.png

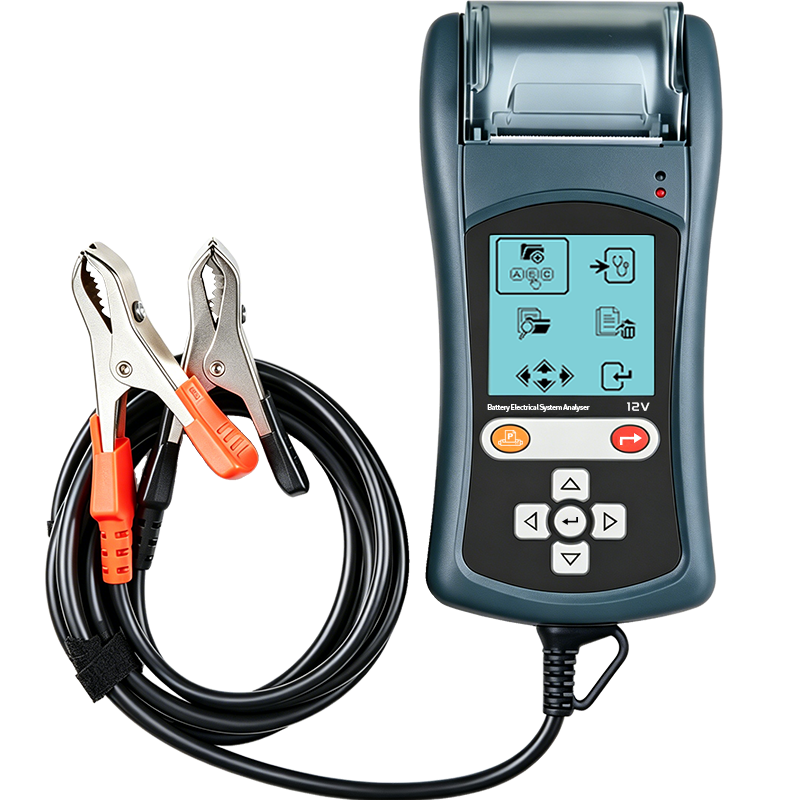

The Battery System Analyser LiFeP04 24V graphic (BSAL24g) is a professional hand-held Battery and electrical system (Starter, Alternator and Ground) tester with black & white graphical instructions, intended for aftermarket equipment distributors.



It test 12V Standard Batteries like Lead-acid, AGM, EFB, GEL Cell, including Lithium-Ion Starter batteries.



Also, it can test Grounding, Starter (12V and 24V starters), and Alternator (12V and 24V) whether Normal or Smart type.



EXCLUSIVE INVENTIONS

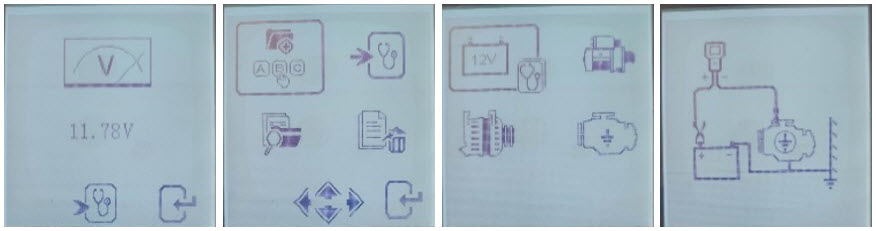

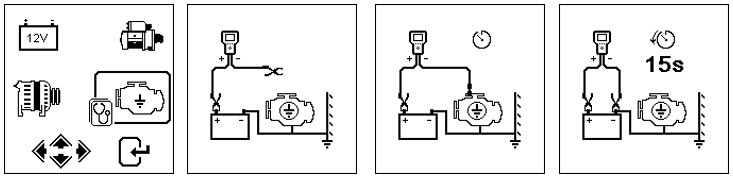

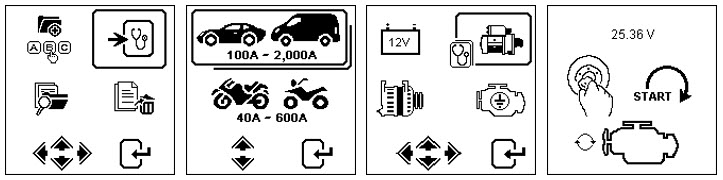

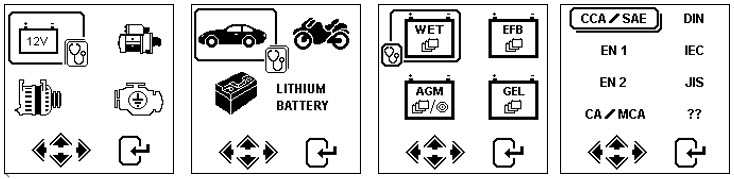

1. Fully graphical instruction- first in the world to utilize graphics on its step-by-step instructions.  The symbols used are universal, easy to understand without extensive knowledge. It solves language barriers and enables mechanics worldwide to use it.

uploads/image/20231207/1701967858.jpg

2. Lithium Ion Starter Battery Test – test starter Lithium Iron Phosphate (LiFePO4) batteries up to 16V and displays the result of the State of Charge (Volt), Rated battery capacity in CCA, Measured CCA (Power Available), Internal Resistance, Life [State of Health].

uploads/image/20230717/1689582528.png

 3. Resistance method - uses a series of shorting pulse to measure the voltage drop in order to calculate the battery plate’s internal resistance.


UNIQUE FEATURES

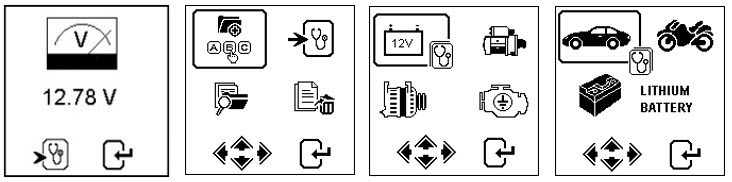

1.    Voltage display – displays the battery voltage (battery State of Charge) once clamped to battery positive and negative terminals.

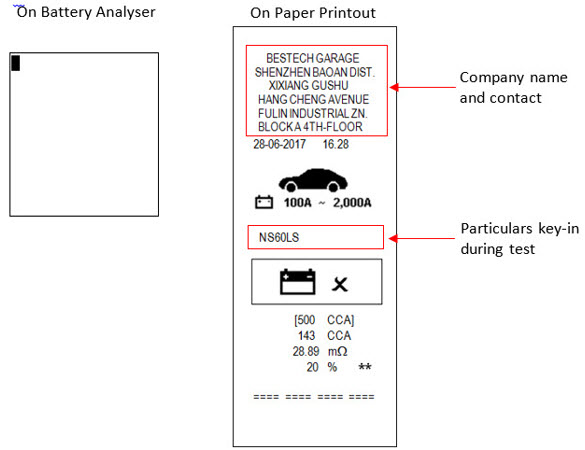

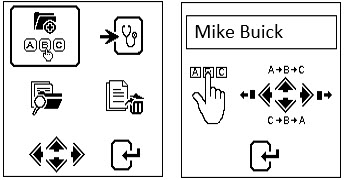

2.    Workshop Detail - allows key in workshop information, customer name, contact details, battery part number, or vehicle model as a reference of test results.

uploads/image/20231207/1701957545.jpg

3. Key-in Particulars - key-in customer name, battery Part Number or vehicle model as reference of the test.

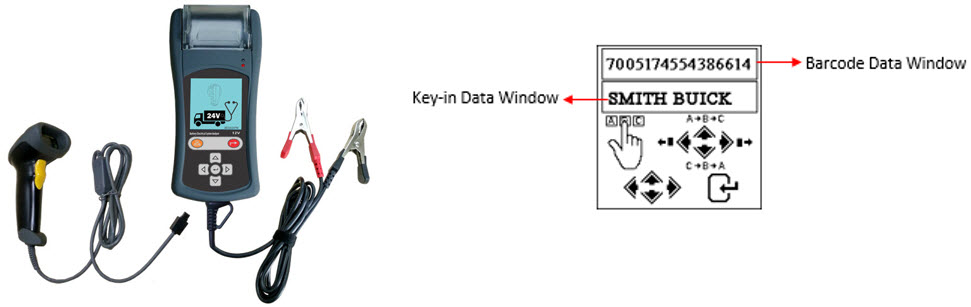

4. Barcode scanner – with provision to use barcode scanner to scan barcodes found on battery label for warranty and claim validation purposes.

uploads/image/20231207/1701966534.jpg

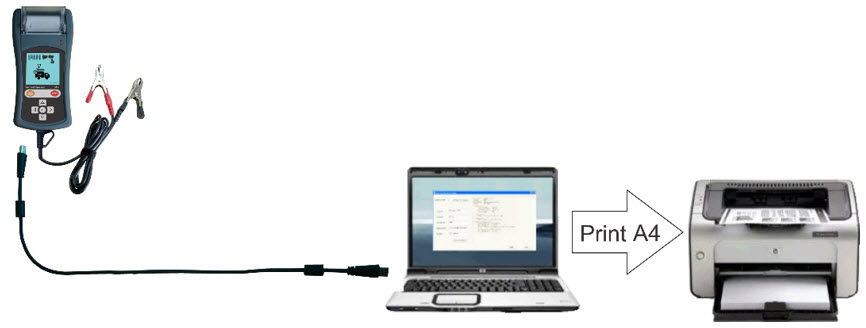

5. PC Link connection - designed to link to a Personal Computer (PC) with installed software and USB cable to transfer test result to PC  for data storage and printout results into normal printer.

uploads/image/20231207/1701964196.jpg

6. Internal Memory – able to save (record) 47 last tests results into its internal memory.


FUNCTIONS

1. Battery Test

·         Measures of the State of Charge (Volt), Rated battery capacity in CCA, measured CCA (Power Available), Internal Resistance, Life [State of Health]

·         Able to test all 12V Car and Motorcycle batteries

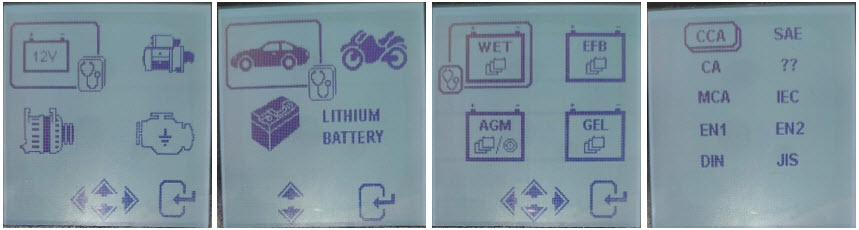

·         Battery type - test Lithium Ion, Flooded, AGM, EFB and Gel Cell batteries

uploads/image/20231207/1701962377.jpg

2. Grounding Test: analyse the condition of vehicle's electrical return circuit contact resistance connected from the engine chassis or car body to the battery terminal with results and recommendations displayed after test.

(Note: Engine ground plays a very important role in ECU communication.)



3. Starter Test: analyse the battery performance (cranking effectiveness) to predict battery cranking failure.



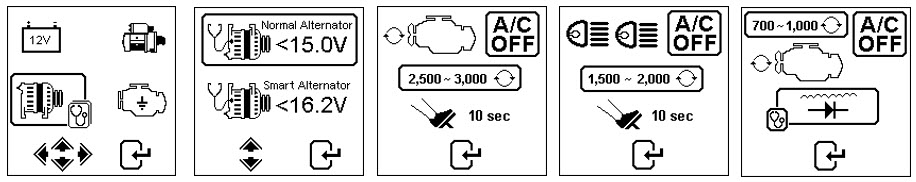

4. Alternator Tests: analyse the alternator charging voltages including diode ripple test for Normal and Smart alternator

    ØNormal/Smart Alternator

    ØWithout Load @2500  3000 RPM

    ØWith Load @ 1500  2000 RPM

    ØDiode Ripple Test within 0.5V



SPECIFICATION

·  Operating voltage            : 9V~30V DC (Max)

·  Analysing Capacity - Car : 100A2000A, Motorcycle: 40A600A

·  Application                       : Car & Motorcycle

·  Battery chemistry             : WET (Flooded), AGM Flat, AGM Spiral, EFB and GEL

·  Rating/Standard               : SAE, CCA, EN1, EN2, DIN, IEC, JIS, UNKNOWN
