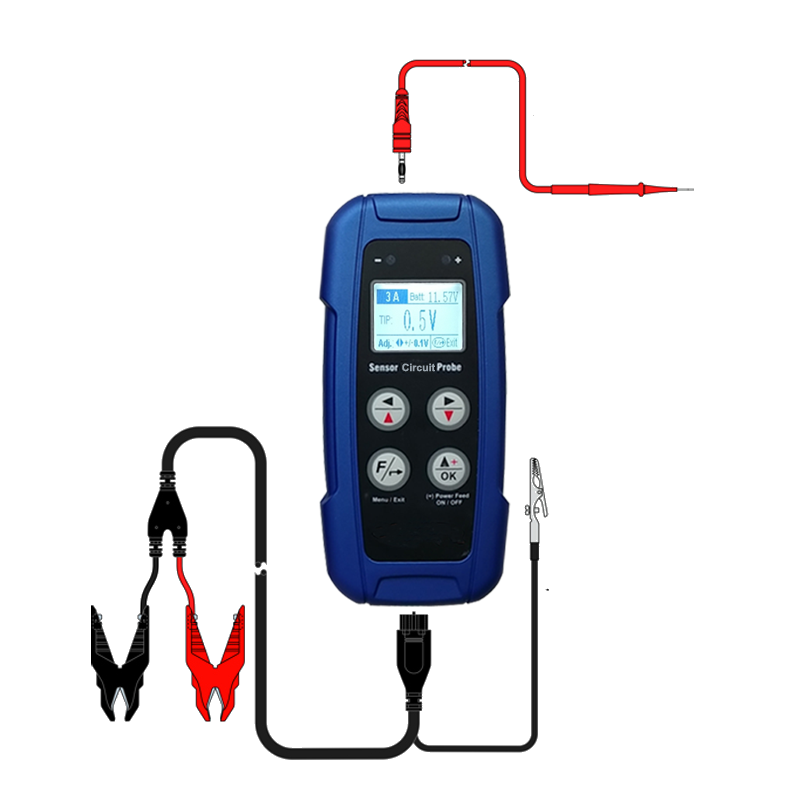

uploads/image/20231029/1698564032.png


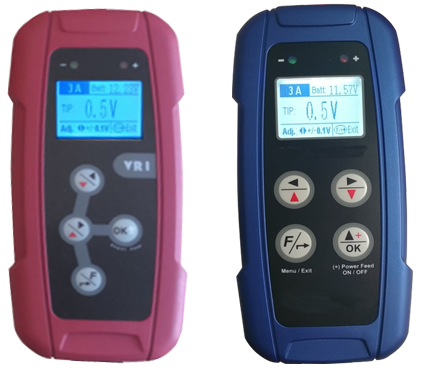

The Sensor Circuit Probe (SCP) can be used in 12/24 volt system with ECM/ECU either independently or used together with a diagnostic scanner to distinguish faults that lie in the sensor itself or the connection wires. The simulated voltage is used to emulate signals generated by different types of sensors.


EXCLUSIVE INVENTION

This Sensor Circuit Probe can simulate voltages with two different current outputs. The volt measurement is up to 70 V DC and the resistance measurement of up to 2K ohms.



UNIQUE FEATURES

1)      12/24 V Auto Detection

2)      Shows Input Battery Voltage

3)      Overload Protection

4)      ON/OFF Speaker Sound Key

5)      LED Indicators for Polarity Test

6)      Reverse Polarity Protection

7)      Power LED Indicating On Cable



FUNCTIONS

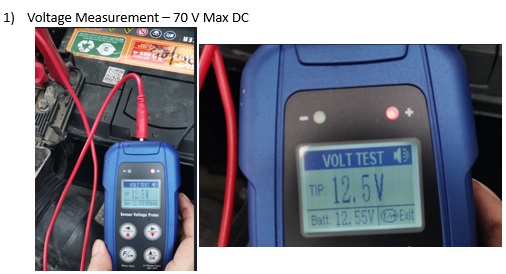

uploads/image/20231028/1698509223.jpg

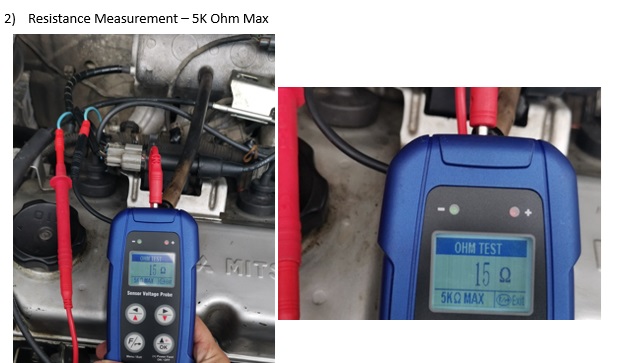

uploads/image/20231028/1698511321.jpg

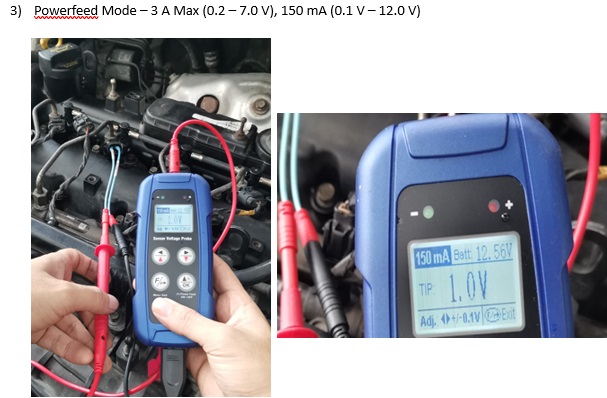

uploads/image/20231028/1698508121.jpg

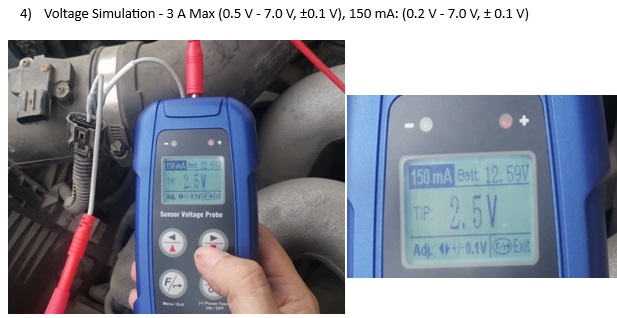

uploads/image/20231028/1698509113.jpg


Technical Specifications:



Operating Voltage..........................................9V to 30V max

Display…………………………………………. LCD Screen (128 x 64 pixels)

Voltage measurement …………………… …. Up to 70V DC

Accuracy………………………………………. +/- 2% + 1 digit

Polarity indication………………………….….  (+) Red LED, (-) Green LED



Ohm measurement……………………………. Up to 2,000 Ohms (2KW)

Accuracy………………………………………... +/- 5%



Simulated Voltages:

0.5Volt ~ 7.0 Volt Output Range:

Max. Output Current……………………….…….3.0 Amps

Adjustment Resolution………………………… .0.1V

Accuracy…….……………………………………+/- 5% reading + 1



0.2 Volt ~ 12.0 Volt Output Range:

Max. Output Current…………………………….150mA (0.15 Amps)

Adjustment Resolution…………………………. 0.1V

Accuracy…….…………………………………… +/- 5% reading +1



Built-in Safety features:

Short circuit Protection……………………….…. Self-Recovery - 3.0 Amps PTC fuse

Inverse Polarity Protection……………………... No power on reverse polarity.



Working Temperature…………………………….0ºC (32°F) ~ 50ºC (122°F)

Working Humidity………………………………...10% ~ 80 %

Approvals…………………………………………. CE, ROHS
