Battery Analyser 12V Language

The Battery Analyzer 12V Language (BA12L) is a 12V battery system analyser that can perform tests on Batteries, Starters, Alternators Charging and vehicle Chassis Ground.

Its operation instructions are display in texts with different Languages as per request.

UNIQUENESS

            ·   No internal batteries- less maintenance upkeep and convenient for transport (stock delivery)

            ·   Chassis Ground test- our very own invention, we are the only one in the world

            ·   Microprocessors-controlled testing method – draws little amp without draining the battery.

            ·   Fast and accurate battery test results in less than 6 seconds (during analysis).

CUSTOMIZATION

Customer to decide on the following:

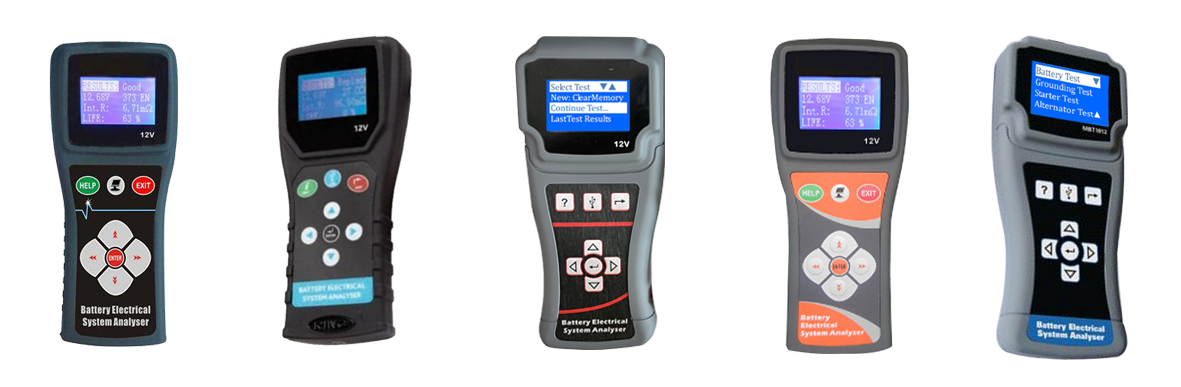

            ·   Housing- shape, appearance or based on their corporate design

            ·   Keypad- touch sensor, metallic dome and silicon rubber keypads, based on their corporate image, colour, logo, overlay etc.

            ·   Accessories- CD/USB key, printed handbook/ quick guide, Cold Cranking Amps (CCA) reference charts

            ·   Colour box- branded colour box or neutral brown box

FEATURE

·   Monochrome LCD display

            ·   Wake-up screen logo- show battery customer’s logo when switch on

           ·   Help Key- provides short information guide of each function

            ·   Able to retrieve and view the last test results

            ·   Stored test results will be updated with Repeat or Continue Tests (e.g. Starter and Alternator tests)

           ·   PC Link - transfer of test results to PC with installed software and USB Cable which allows printout.

FUNCTION

·   12V Battery Test - analyses the battery condition (State of Charge, Good, Need Re-charge, measured CCA, Internal Resistance, Battery Life%)

·   12V Starter Test - analyses the cranking effectiveness of battery to predict battery crank failure (Normal/High)

·   12V Alternator Test - analyses alternator charging functionality

Ø  Without Load @ 3000 RPM

Ø  With Load @ 2000 RPM

·   12V Grounding Test - analyses the condition of the electrical return circuit contact resistance which is connected to the engine/chassis body from battery.

SPECIFICATION

            ·   Operating voltage - 9～15V DC (max)

·   Analysing Capacity - Car: 100A～1700A, Motorcycle: 40～ 600A

·   Application: Car, Motorcycle

·   Battery chemistry: WET (Flooded), AGM Flat, AGM Spiral, EFB and GEL Cell

·   Rating/Standard: SAE, CCA, EN1, EN2, DIN, IEC, JIS, UNKNOW
